Antennas

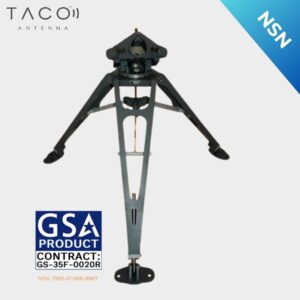

Model HM-5 MUOS SATCOM UHF MUOS SATCOM Fixed Helical Antenna Tripod Mount
Series: H Series
The HM-5 is a versatile tripod mount for our high gain MUOS SATCOM fixed helical antennas, with the ability to adjust and align to any azimuth or elevation angle.
- NSN: 5985-01-666-8867
0 In Stock

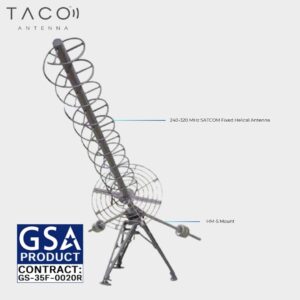

Model H-124 240-320 MHz SATCOM Fixed Helical Antenna
H-124 – Key Specs
- Frequency: 240-320MHz
- Gain: 15.0 dBic
- HPBW: 41°
- VSWR: 1.5:1 Max / 1.2 Typical
- Impedance: 50 ohm
- Polarization: Circular
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 500 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 12
- Sectional: No
- NSN: 5985-01-476-0720
0 In Stock
Model H-104 240-320 MHz SATCOM Fixed Helical Antenna
H-104 – Key Specs
- Gain: 13.4 dBic
- Frequency: 240-320MHz
- HPBW: 41°
- VSWR: 1.5:1 Max / 1.2 Typical
- Impedance: 50 ohm
- Polarization: Circular
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 500 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 10
- Sectional: No
- Mast OD (in): 3
Dimensions: 134″ L x 35.0″ W (340.4 cm L x 89.0 cm W)
Weight: 44 lbs
0 In Stock

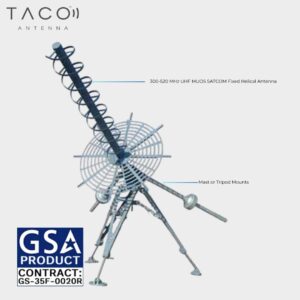

Model H-085 300-520 MHz UHF MUOS SATCOM Fixed Helical Antenna
H-085 – Key Specs
- Frequency: 300-520MHz
- HPBW: 40°
- VSWR: 1.5:1 Max / 1.3 Typical
- Impedance: 50 ohm
- Polarization: Circular
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 500 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 8
- Sectional: No
- Gain: 13.2 dBic
0 In Stock
Model H-084 240-320 MHz SATCOM Fixed Helical Antenna
H-084 – Key Specs
- Gain: 13.1 dBic
- Frequency: 240-320MHz
- HPBW: 46°
- VSWR: 1.5:1 Max / 1.2 Typical
- Impedance: 50 ohm
- Polarization: Circular
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 500 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 8
- Sectional: No
- Mast OD (in): 3
0 In Stock

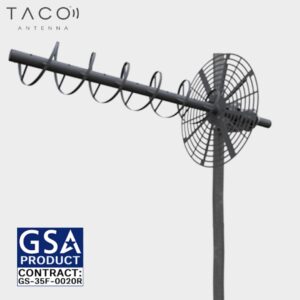

Model H-064A 225-400 MHz MUOS SATCOM Fixed Helical Antenna
H-064A – Key Specs
- Gain: 11.9 dBic
- Frequency: 225-400MHz
- HPBW: 48°
- VSWR: 1.5:1 Max / 1.3 Typical
- Impedance: 50 ohm
- Polarization: Circular
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 500 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 6
- Sectional: No
- Mast OD (in): 2.9
Dimensions: 84.0″ L x 35.0″ W (213.4 cm L x 89.0 cm W)
Weight: 30 lbs
0 In Stock

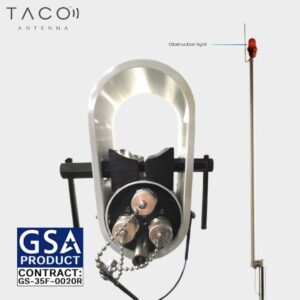

Model D2296-OL-LED VHF/UHF/VHF Air Traffic Control MULDIPOL™ Omni Military Antenna With Obstruction Light
D2260 Key Specs:
- Gain: 2 dBi
- Frequency: 118-136MHz
- HPBW: 75°
- Isolation: 29
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 3
- Number of Elements: V/V/V
- Longest Element: 140 in (355.6 cm)
- Sectional: Yes
- NSN: 5985-01-438-1459
- Mast OD (in): 3
Dimensions: 197.9″ L (502.7 cm L)
Weight: 16.0 lbs
0 In Stock

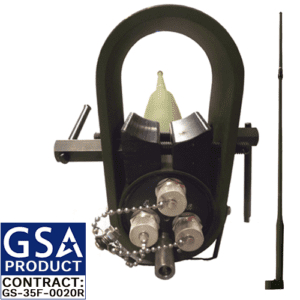

Model D2218-A VHF/UHF/VHF 2-Piece Air Traffic Control MULDIPOL™ Omni Military Antenna
D2260 Key Specs:
- Gain: 2.0 dBi
- Frequency: 2 x 116-150, 225-400MHz
- HPBW: 75°
- Isolation: 30
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- UHF Applied Power: 250 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 3
- Number of Elements: 3
- Sectional: Yes
- NSN: 5985-01-063-1474
- Mast OD (in): 3
Dimensions: 1695″ L (431.8 cm L)
Weight: 17.0 lbs
0 In Stock

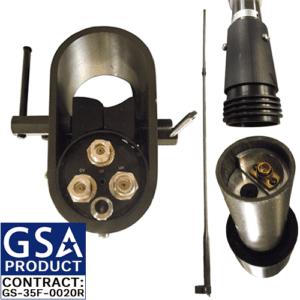

Model D2260 VHF/VHF/VHF Air Traffic Control MULDIPOL™ Omni Military Antenna
D2260 Key Specs:
- Gain: 2 dBi
- Frequency: 118-136MHz
- HPBW: 75°
- Isolation: 29
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 3
- Number of Elements: V/V/V
- Longest Element: 140 in (355.6 cm)
- Sectional: Yes
- NSN: 5985-01-438-1459
- Mast OD (in): 3
Dimensions: 197.9″ L (502.7 cm L)
Weight: 16.0 lbs
0 In Stock
Model D5072 VHF/VHF Air Traffic Control Civil Aviation Dipole Antenna
MULDIPOL™, VHF/VHF Air Traffic Control Civil Aviation
2×118-137 MHz
2 connectors0 In Stock

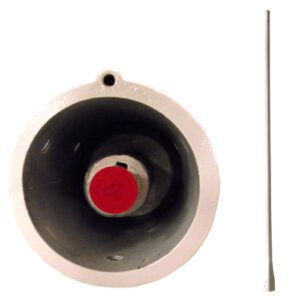

Model D5061A-1 VHF/VHF High Gain Air Traffic Control Civil Aviation MULDIPOL™ Antenna
D5061-A-1 Key Specs:
- Gain: 4.0 dBi
- Frequency: 118-137MHz
- HPBW: 40°
- VSWR: 1.9 Max / 1.5 Typical
- Driven Elements: 1
- Impedance: 50 ohm
- Polarization: Vertical
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 600 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 2
- Sectional: No
- NSN: 5985-01-050-7525
- Mast OD (in): 1.66-2.875
Dimensions: 137.3″ L (348.7 cm L)
Weight: 15.5 lbs
0 In Stock

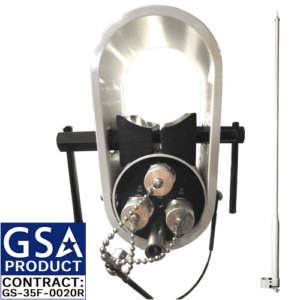

Model D2295 UHF/VHF/UHF Air Traffic Control MULDIPOL™ Omni Military Antenna
D2295 Key Specs:
- Gain: 2.0 dBi
- Frequency: 116-150, 2 x 225-400MHz
- HPBW: 75°
- Isolation: 30
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- UHF Applied Power: 250 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 3
- Number of Elements: 3
- Sectional: No
- NSN: 5985-01-383-8620
- Mast OD (in): 3
Dimensions: 116.6″ L (296.2 cm L)
Weight: 16.0 lbs
0 In Stock

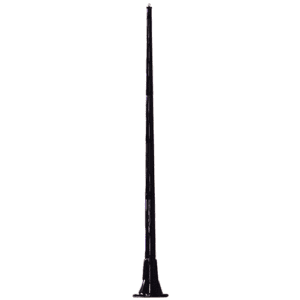

Model D8266 UHF High Gain Arctic Military Dipole Antenna
- Gain: 7.5 dBi
- Frequency: 225-400MHz
- HPBW: 13°
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- UHF Applied Power: 250
- Operating Temp: -58 to 158 F (-50 to 70 C)
- Sectional: No
Dimensions: 215.9″ L x 13.0″ W (548.4 cm L x 5.9 cm W)
Weight: 86.0 lbs
0 In Stock

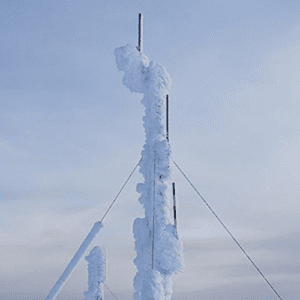

Model D8076 VHF Arctic Grade Antenna
- Gain: 2.0 dBi
- Frequency: 118-137MHz
- HPBW: 75°
- VSWR: 1.9 Max / 1.5 Typical
- Driven Elements: 1
- Impedance: 50 ohm
- Polarization: Vertical
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 350 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 1
- Sectional: No
- NSN: 5985-01-050-7522
- Mast OD (in): 1.66-2.875
Dimensions: 55.5″ L (141.0 cm L)
Weight: 5.5 lbs
0 In Stock
Model D5076 VHF Air Traffic Control Civil Aviation MULDIPOL™ Antenna
- Gain: 2.0 dBi
- Frequency: 118-137MHz
- HPBW: 75°
- VSWR: 1.9 Max / 1.5 Typical
- Driven Elements: 1
- Impedance: 50 ohm
- Polarization: Vertical
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 350 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 1
- Sectional: No
- NSN: 5985-01-050-7522
- Mast OD (in): 1.66-2.875
Dimensions: 55.5″ L (141.0 cm L)
Weight: 5.5 lbs
0 In Stock

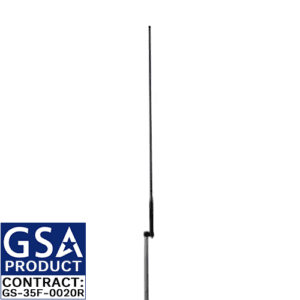

Model D2211 VHF/UHF Single Output Air Traffic Control Military MULDIPOL™ Antenna (Copy)
D2212 Key Specs:
- Gain: 2 dBi
- Frequency: 116-150MHz
- HPBW: 75°
- Isolation: 30
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 2
- Number of Elements: 2
- Sectional: No
- NSN: 5985-01-315-7443
- Mast OD (in): 3
Dimensions: 153.4″ L (389.6 cm L)
Weight: 14 lbs
0 In Stock

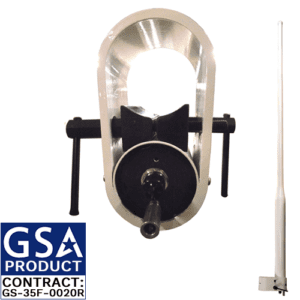

Model D2211 VHF/UHF Single Output Air Traffic Control Military MULDIPOL™ Antenna
- Gain: 2.0 dBi
- Frequency: 108-174, 225-400MHz
- HPBW: 75°
- Isolation: N/A
- VSWR Max: 2.3:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 250 Continuous
- UHF Applied Power: 250 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 2
- Sectional: No
- NSN: 5985-01-568-9419
- Mast OD (in): 3
Dimensions: 104.4″ L (265.2 cm L)
Weight: 12.0 lbs
0 In Stock

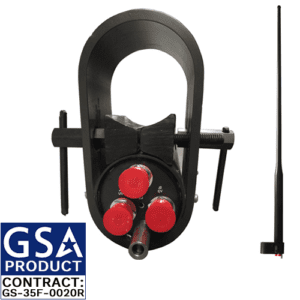

Model D2118 UHF/VHF/UHF Air Traffic Control MULDIPOL™ Omni Military Antenna
MULDIPOL™, U/V/U Ground-to-Air
0 In Stock

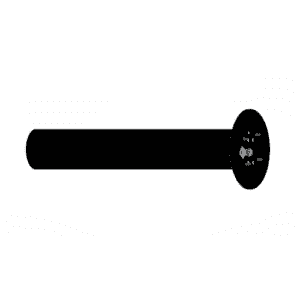

Model H-L1L2-13-NF GPS L1-L2 Frequencies 1.15 to 1.62 GHz Counter Drone Antenna
Counter Drone, GPS Band 13 dBi GAIN
1 In Stock

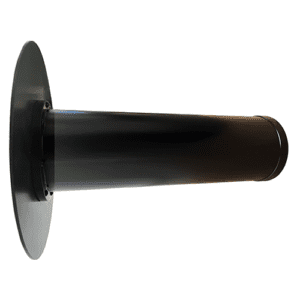

Model H-900-12-NF 900 MHz Helical Antenna
- Gain: 12 dBi / 12 dBic
- Frequency: 690-1000MHz
- HPBW: 43°
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: RHCP
- Connector Type: N Female
- Max Power: 100 watts
- Operating Temp: 40 to +167 F (-40 to +75 C)
- Sectional: No
Dimensions: 18.6″ L x 12.0″ W x 5.0″ H (47.2 cm L x 30.5 cm W x 12.7 cm H)
Weight: 4.3 lbs
0 In Stock

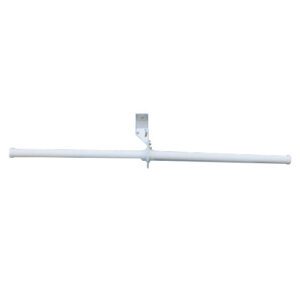

Model BDH2024-ASP Anti-Static Bi-Directional 2.4 GHz Helical Antenna
- Ideal for underground corridors, mining, security and other wireless applications.
- Connector Type: N Female
- Mast OD (in): 2.0
Dimensions: 60.4″ L x 5.5″ W x 2″ H (153.4 cm L x 14.0 cm W x 5.1 cm H)
Weight: 2.5 lbs
0 In Stock
- Ideal for underground corridors, mining, security and other wireless applications.

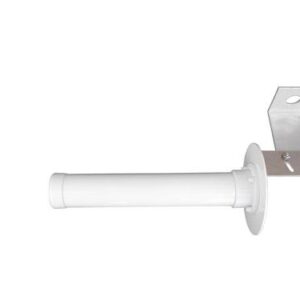

Model H1024-W 2.4 GHz Helical Antenna
- Gain: 10.8 dBi / 13.8 dBic
- Frequency: 2400-2500MHz
- HPBW: 35°
- VSWR Max: 1.5
- Impedance: 50 ohm
- Polarization: RHCP Standard
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 50 watts
- Operating Temp: -40 to 140 F (-40 to 60 C)
- Connectors: 1
- Sectional: No
- Mast OD (in): 1.625
Dimensions: 13.1″ L x 5.5″ W x 2″ H (33.3 cm L x 13.8 cm W x 5.1 cm H)
Weight: 1.2 lbs
0 In Stock
-
Model H1024-ASP 2.4 GHz Anti-Static Helical Antenna
- Gain: 10.8 dBi / 13.8 dBic
- Frequency: 2400-2500MHz
- HPBW: 35°
- Impedance: 50 ohm
- Polarization: RHCP Standard
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 50 watts
- Operating Temp: -40 to 140 F (-40 to 60 C)
- Connectors: 1
- Sectional: No
- Mast OD (in): 1.625
Dimensions: 13.1″ L x 5.5″ W x 2″ H (33.3 cm L x 13.8 cm W x 5.1 cm H)
Weight: 1.2 lbs
0 In Stock
Showing 1–24 of 34 results
