ANATECH - 707 / 742.5 / 782 / 833 / 878 MHZ CERAMIC 5PLEX MULTIPLEXER
ANATECH - 707 / 742.5 / 782 / 833 / 878 MHZ CERAMIC 5PLEX MULTIPLEXER - Image 2

ANATECH – 707 / 742.5 / 782 / 833 / 878 MHZ CERAMIC 5PLEX MULTIPLEXER

Availability: In Stock

  • Please Click the Spec Matched RF Filter below to help you find the best Product that will suit your application
Click HERE – Spec Matched RF Filters
  • Choose from our extensive list of standard product
Click HERE
  •  Couldn’t find the right Multiplexer for you?

    Let Us Help you!

      Click HERE
Compare
Add to Wishlist
Enquire about this product

Product Enquiry

Compare
SKU: AE707-742-782-833-878MP1004 Category: Tags: , , , ,

Description

GENERAL CHARACTERISTICS

BAND 5862-894 MHz
BAND 5 REJECTION>50 dB
BAND 5 INSERTION LOSS<3.9 dB
BAND 4 REJECTION>47 dB
BAND 4 INSERTION LOSS<3.1 dB
BAND 4817-849 MHz
BAND 3 REJECTION>60 dB
BAND 3 INSERTION LOSS<3.4 dB
BAND 3777-787 MHz
BAND 1 INSERTION LOSS<3.5 dB
BAND 1 REJECTION>60 dB
BAND 2 REJECTION>55 dB
STYLESMT
BAND 2 INSERTION LOSS<3.5 dB

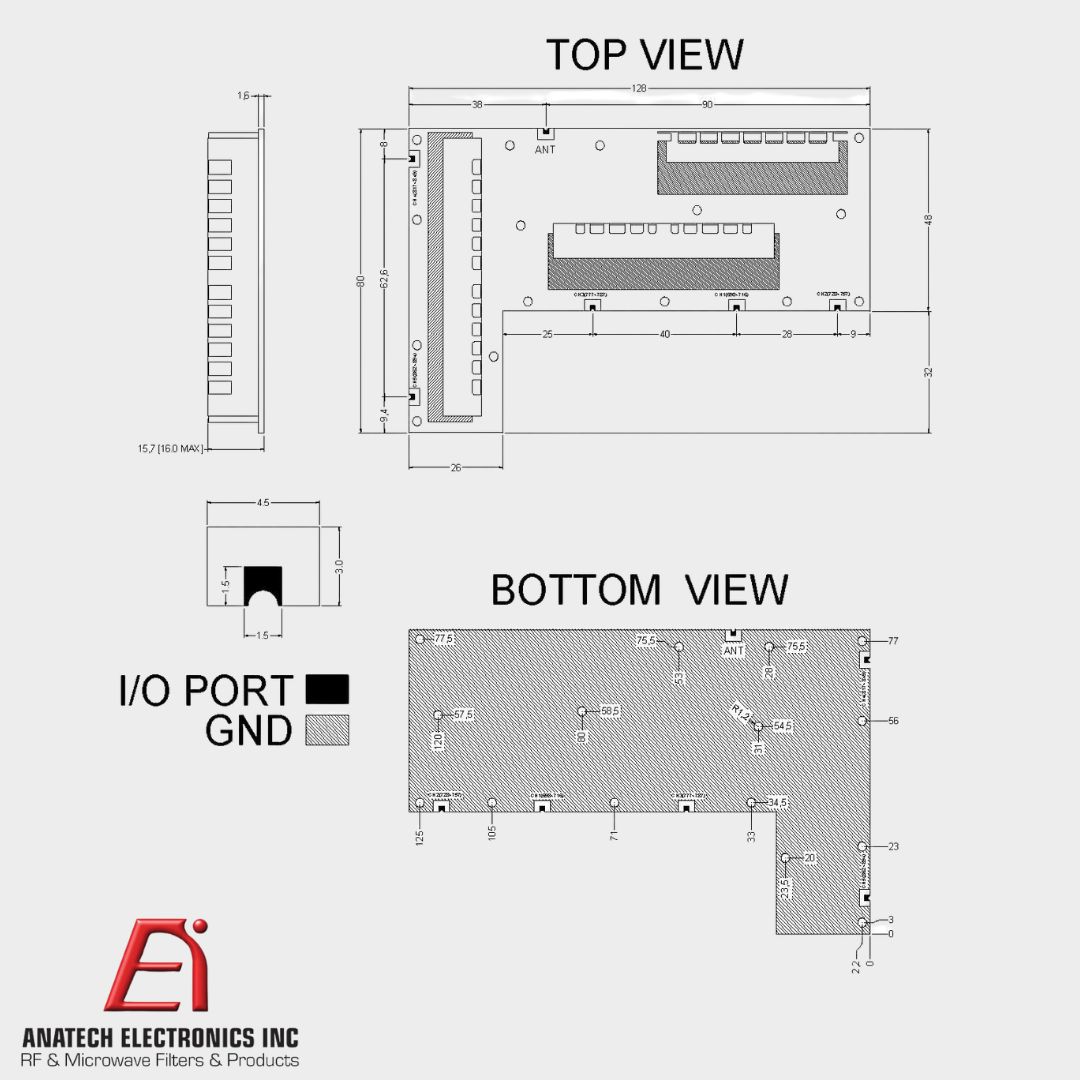

DIMENSIONS128 x 80 x 15.7 mm
BAND 1698-716 MHz
BAND 2728-757 MHZ

707 / 742.5 / 782 / 833 / 878 MHZ CERAMIC 5PLEX MULTIPLEXER

ANATECH – 707 / 742.5 / 782 / 833 / 878 MHZ CERAMIC 5PLEX MULTIPLEXER

ANATECH – 707 / 742.5 / 782 / 833 / 878 MHZ CERAMIC 5PLEX MULTIPLEXER

In Stock
