Description

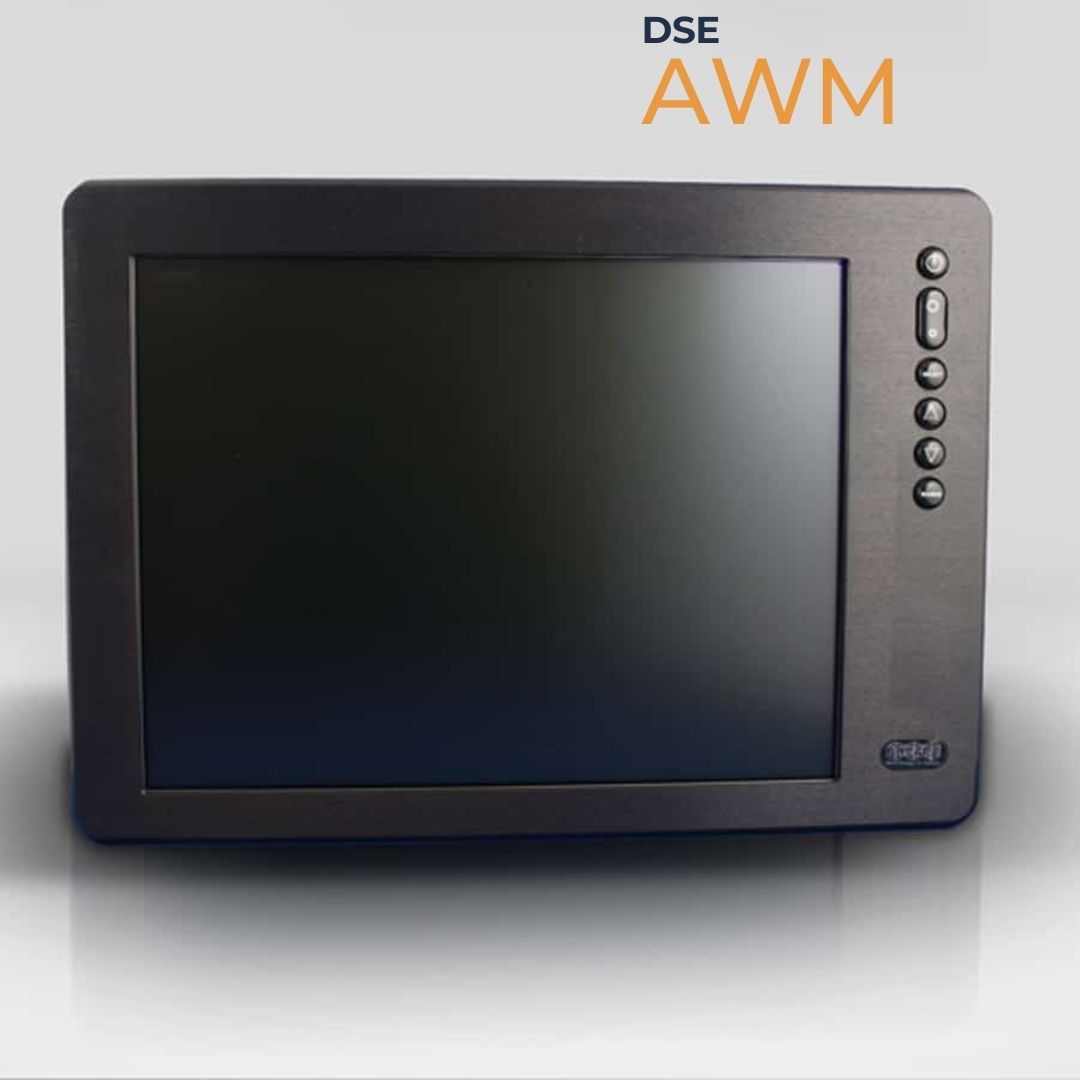

AWM – All-Weather Monitor Series
The slim-profile, lightweight AWM series displays are housed in a billet aluminum enclosure with sealed connectors. Multiple mounting options allow for easy integration into confined spaces typically found in rugged industrial and mobile applications. The AWM displays are available in four sizes with various video inputs including VGA and RS-170 (NTSC/PAL).
Interesting Features:
- Interconnects – AWM employs rugged IP68 sealed connectors for video inputs and signal pass-throughs
- Trusted Globally – AWM displays can be found worldwide on agriculture machines, mining equipment and marine vessels
- Outdoor Ready – With anti-reflective and anti-glare treatments, plus high-powered LCDs, the AWM series is perfect for direct sunlight applications.
| Display Sizes | 8.4, 10.4, 12.1, & 15” |
| LCD Resolution | SVGA (800 x 600) and XGA (1024 x 768) |
| Video Inputs/Outputs | VGA, Composite Video (NTSC/PAL). |
| User Interface | On-Screen Menu, Optional Touch Screen |
| Options | Mounting Configurations, Low Temperature Operation, LCD Resolution, USB Pass-Through, AC Power Input |
| Power Input | 10-36VDC |
| Standards | IP67, Wide Temperature, Shock, Vibration, Altitude |
