Description
DSE- DVE10VR2
Drive’s Vision Enhancer Monitor with VGA, Composite video Input

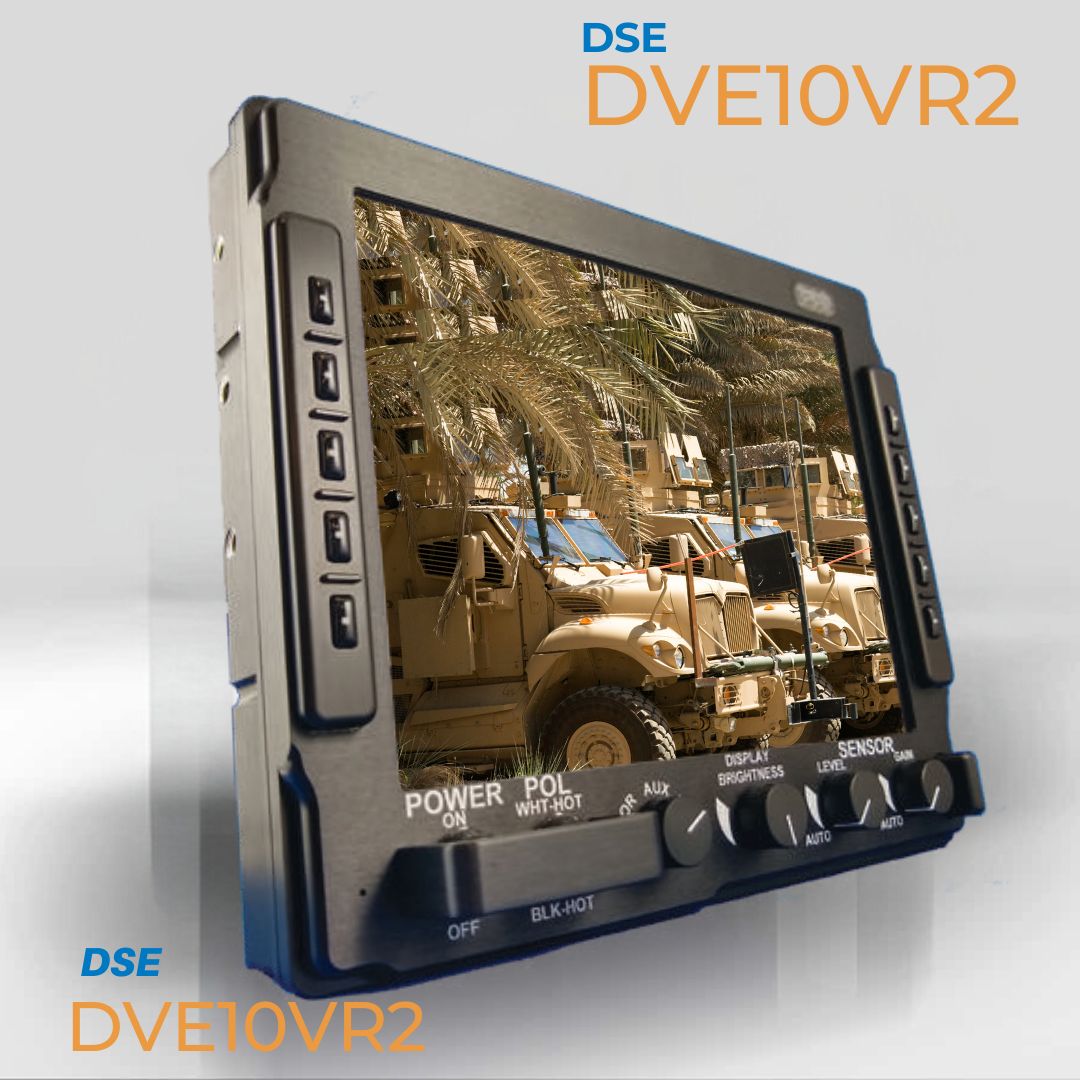

The DVE10VR2 Monitor is an advanced Driver’s Vision Enhancer (DVE) display engineered to operate in military tactical-wheeled and tracked-vehicle operations. The DVE10VR2 is designed with Programmable Bezel Keys for ASCII or HEX code (via RS232) protocol for control of external systems.
Standard Features:

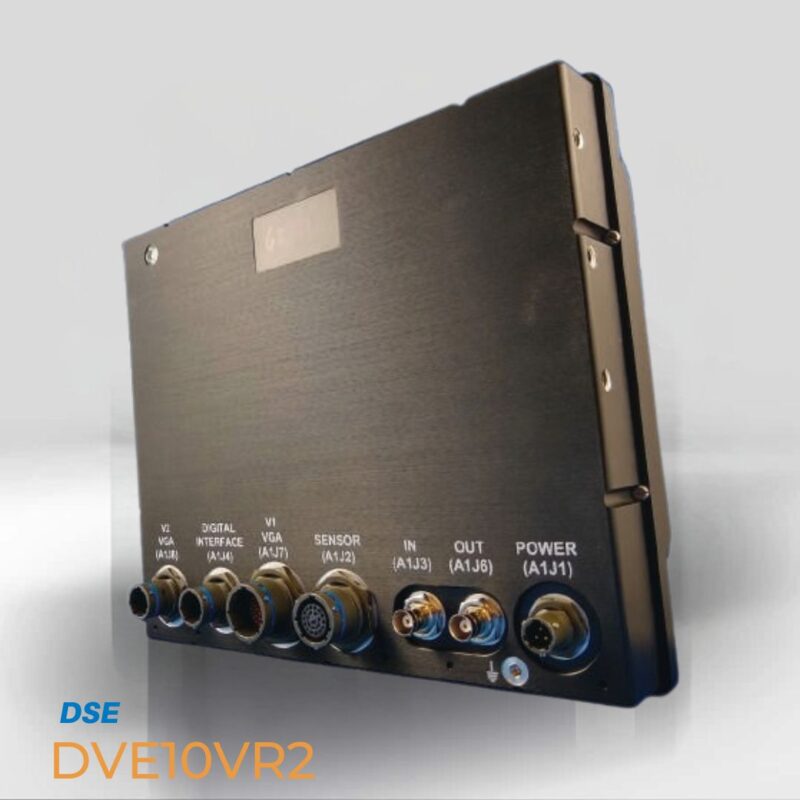

- VGA Inputs (2)
- Composite Video Auxiliary Input (1)
- Composite Video Sensor Input (1)
- Composite Video Auxiliary Output (1)
- Auto Sensing NTSC, PAL Formats
- Digital Interface Input, RS422 (1)
- Programmable Bezel Keys (10) (ASCII or HEX Code via RS232; operates with VGA Inputs)
- SVGA Resolution (800×600)
- MIL-C Connectors*
- LED Backlight (3000:1 Dimming Ratio)
- Anti-Reflective and Anti-Glare Treatments
- Enhanced Sunlight Readability
- 10.4” TFT AMLCD
- Mounts in Standard DVE Bracket
Please refer to Spec Sheet
