Description
DSE-HDRM

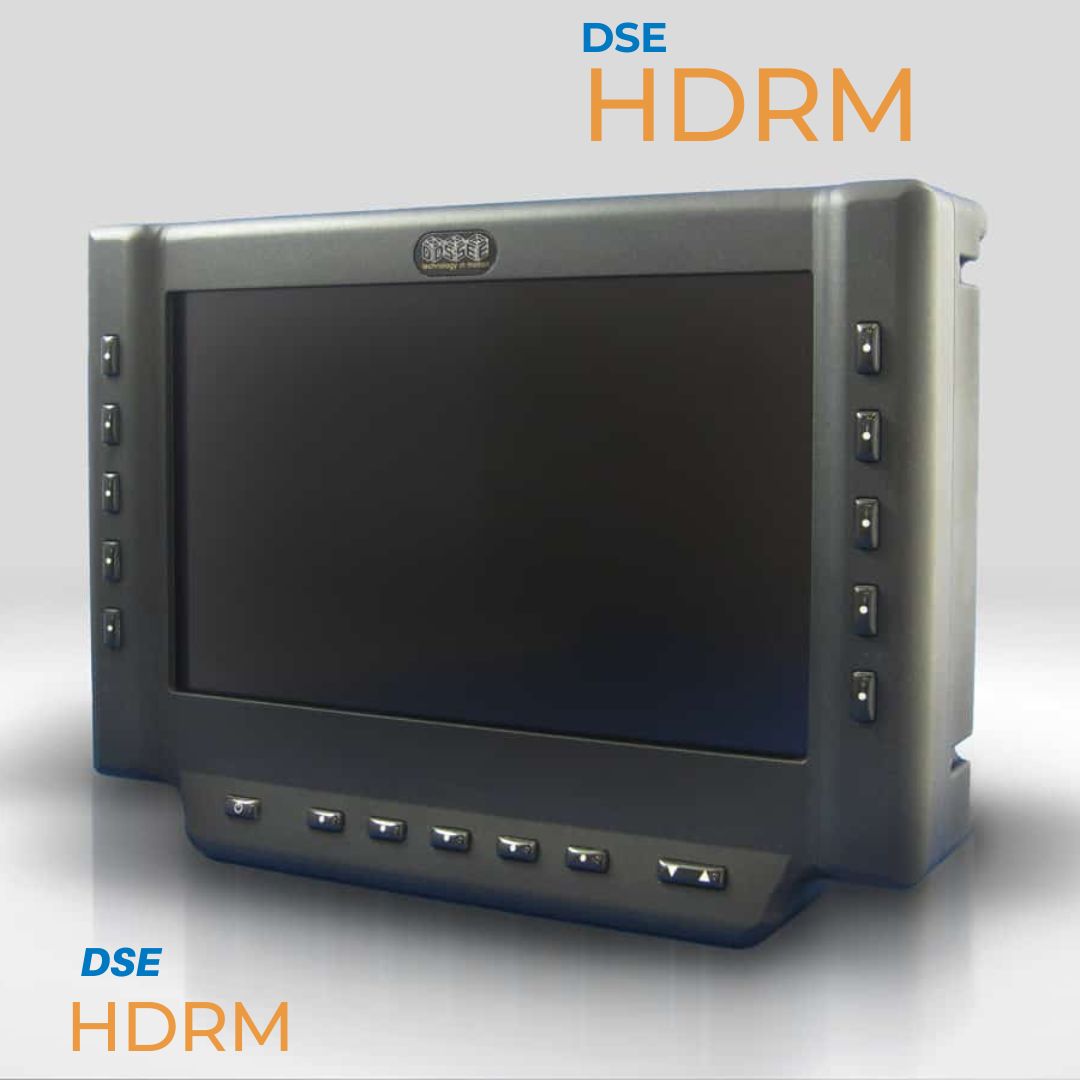

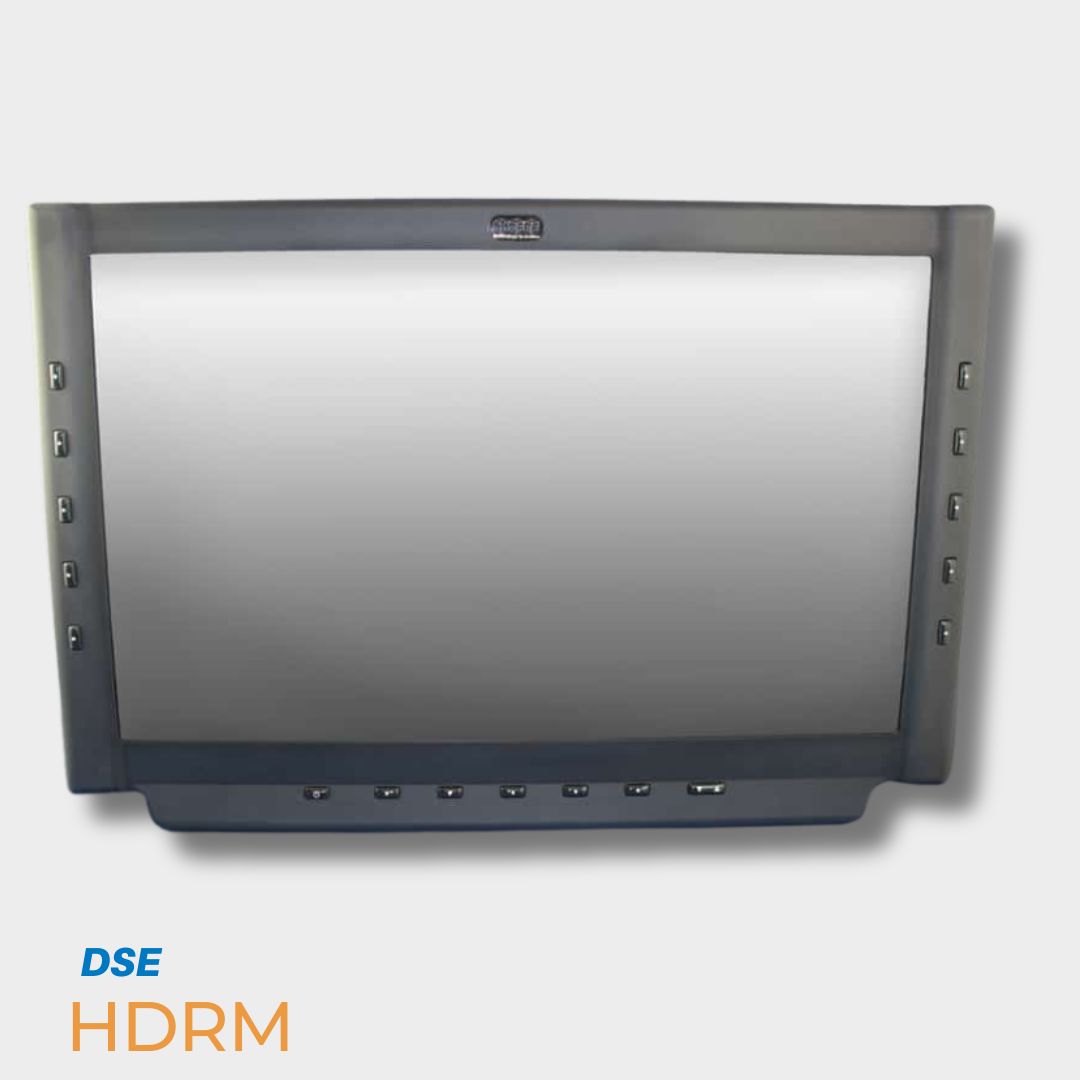

High Definition Rugged Monitor
Offering a ruggedized design, low-power consumption, and high brightness, the ultra-thin High Definition Rugged Monitor (HDRM) displays up to 1080p HD video during critical operations. The rugged HDRM monitor ensures complete optical performance and full reliability while providing a small footprint for small spaces. The HDRM Series of displays is available in four sizes.
Key Standard Features:

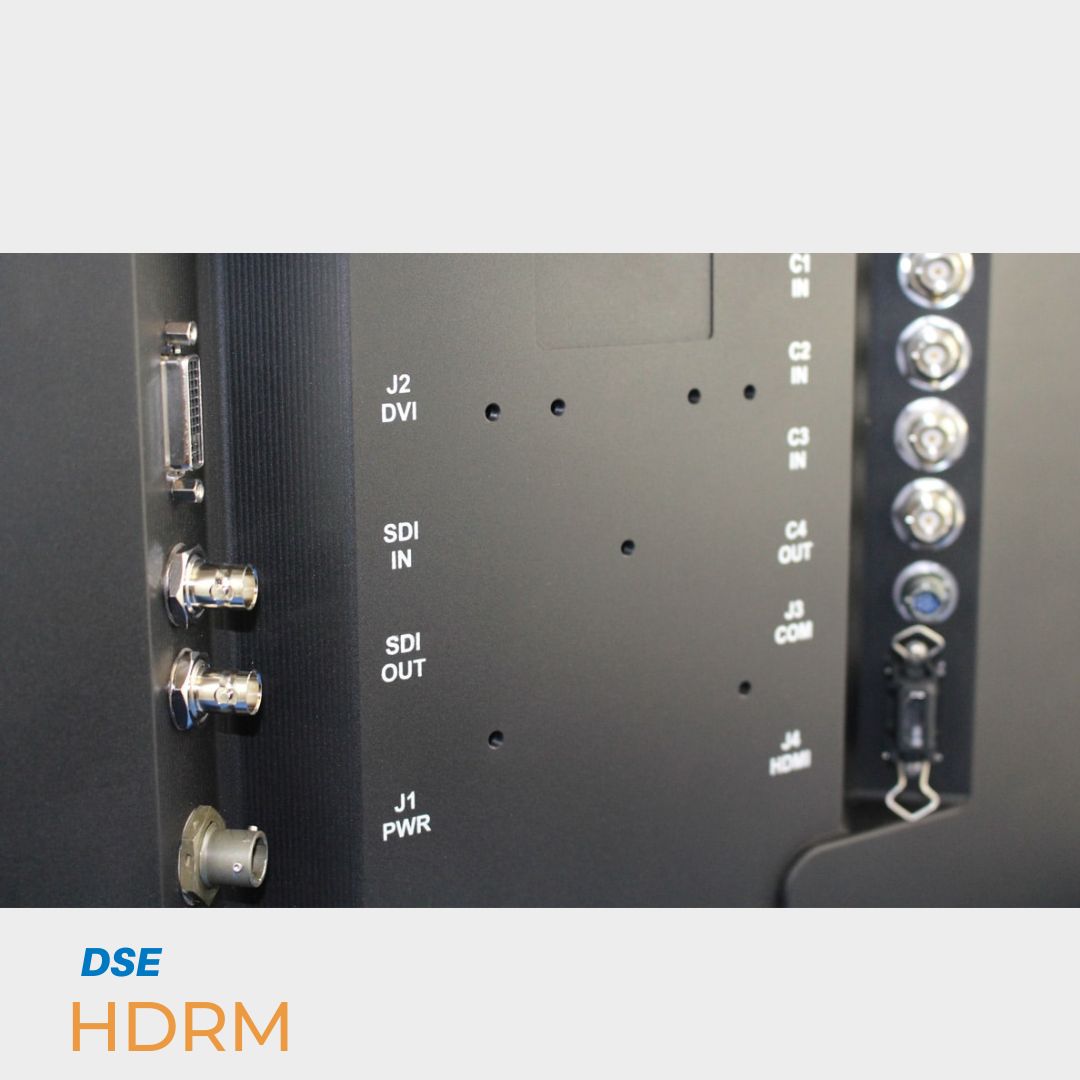

- SDI Input (1), 3G/HD/SD – SMPTE 424M/292M/259M
- SDI Output (1), 3G/HD/SD – SMPTE 424M/292M/259M
- HDMI Input (1)
- DVI-I Input (1)
- Composite Video Inputs (3), PIP Capable
- Composite Video Output (1)
- Auto Sensing NTSC, PAL Formats
- Up to 1080p30 High Definition Video
- MIL-C Power*
- LED Backlight (1000:1 Dimming Ratio)
- Anti-Reflective and Anti-Glare Treatments
- Enhanced Sunlight Readability
- IP67/NEMA 6 Enclosure (Sealed Connectors*)
- User Programmable Bezel Keys (15), RS232
- 0″, 12.1″, 14.1″ and 17.5″ TFT AMLCD
- MIL-STD-461, 704, 810, 1275
Optional Features:
- Resistive Touch Screen (USB or RS232 Interface)
- Night Vision Compatible – Monochrome Red/Green
- NVIS MIL-STD-3009 Class B White Compliant
| Display Sizes | 9.0, 12.1, 14.1, 17.5″ |
| LCD Resolution | High Definition (1280 x 768) |
| Video Inputs | HD-SDI, HDMI, DVI/VGA, Composite Video (NTSC/PAL) |
| Video Outputs | HD-SDI, Composite Video (NTSC/PAL) |
| User Interface | Programmable Bezel Keys, Optional Touch Screen |
| Options | NVIS Compliance/Compatibility, Mounting Configurations |
| Power Input | 10-36VDC |
| Standards | MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160 |
*Specifications may change depending on size and configuration. See data sheet for specific details.
