Description

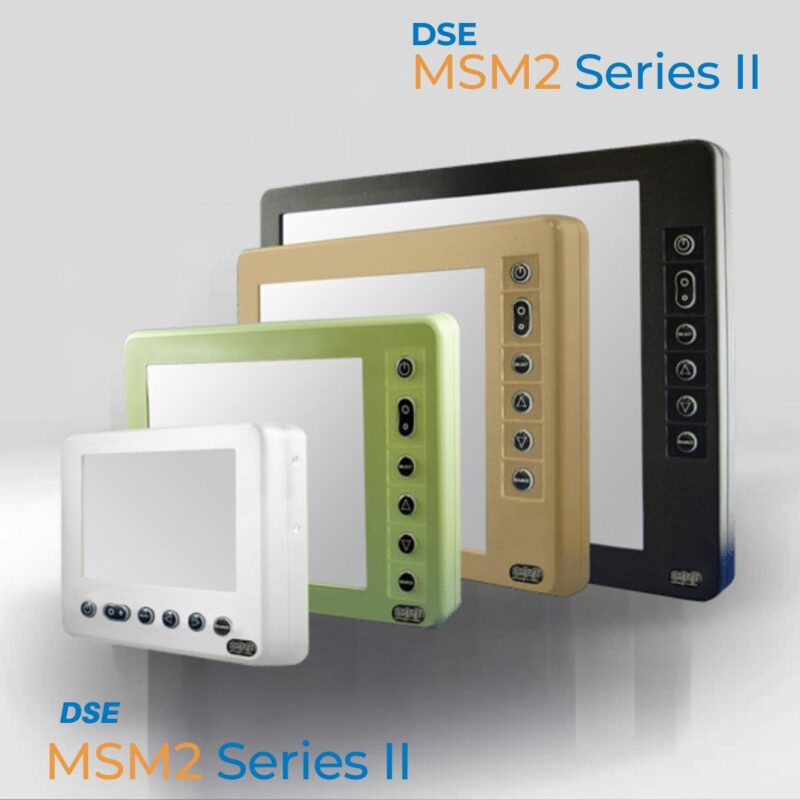

DSE- MSM2 Series II
MIL-SPEC Monitor (MSM) Series II
On today’s digital battlefield, rugged hardware must be designed to operate in any environment. DSE designs and manufactures highly reliable military COTS displays that meet and exceed key military specifications including MIL-STD-461, MIL-STD-810 and MIL-STD-1275. The MSM2 Series of displays are available in five sizes with a myriad of video input options including DVI-D, VGA, Composite Video (NTSC/PAL), and DisplayPort. MSM2 products can be found supporting missions on vehicles such as THAAD Missile Launcher, Stryker, B1 Bomber, Amphibious Assault Vehicle, C130, and more.
| Display Sizes | 6.5, 8.4, 10.4, 12.1, 15, and 17″ |
| LCD Resolution | SVGA, XGA, and SXGA |

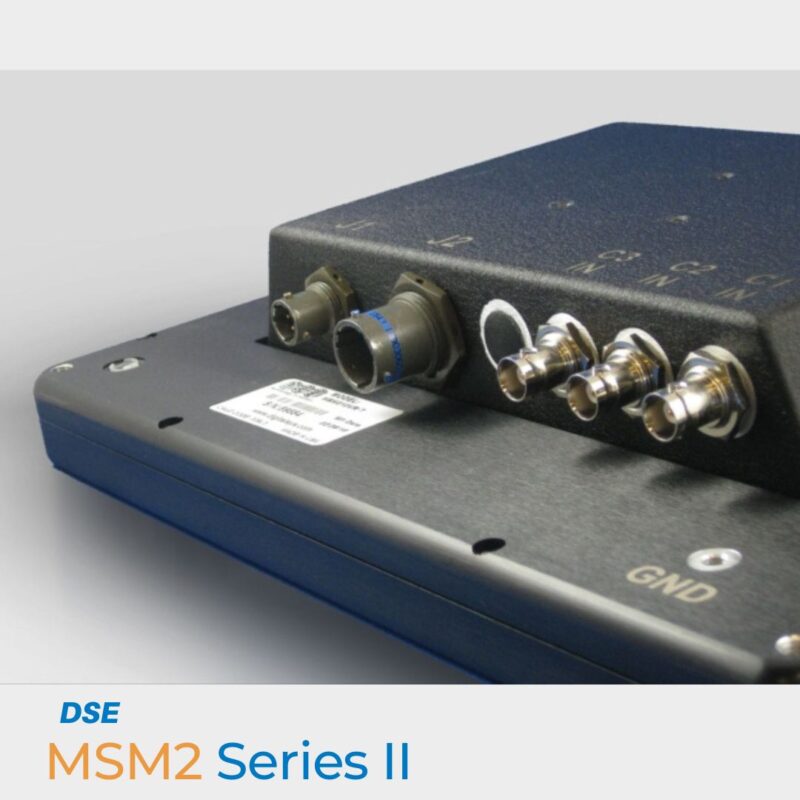

| Video Inputs | VGA, Composite Video (NTSC/PAL), and/or DVI/DisplayPort |
| Options | Touch Screen, NVIS Compliance/Compatibility, Mounting Configurations |
| Power Input | 10-36VDC |
| Standards | MIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160 |
*Specifications may change depending on size and configuration. See data sheet for specific details.
Please refer to Spec Sheet for More Details
