OVERSEER

1080p High-Def Rugged Monitor and DVR Series

Finally, a truly high definition display with all the SMARTS! Engineered for the toughest climates, the OVRCR smart displays are the only perfect high definition solution for a complex MIL-SPEC network system. With an onboard multi-channel DVR, Full HD (1080p) graphics, gigabit ethernet support, and a scalable processing backbone, the OVRCR has the intelligence to interpret, record, and communicate with the most advanced vehicular system in today’s cutting-edge military fleet. Robust graphic user interfaces, programmable bezel keys, optional touch screen, and customizable menus allow for this high-end smart display to be seamlessly installed and coexist with a wide array of sensors, computers, and communication networks.

Display Sizes10.1, 13.3, 15.6, 17.3, 24.0″
LCD ResolutionFull High Definition (1920 x 1080 and 1920 x 1200)

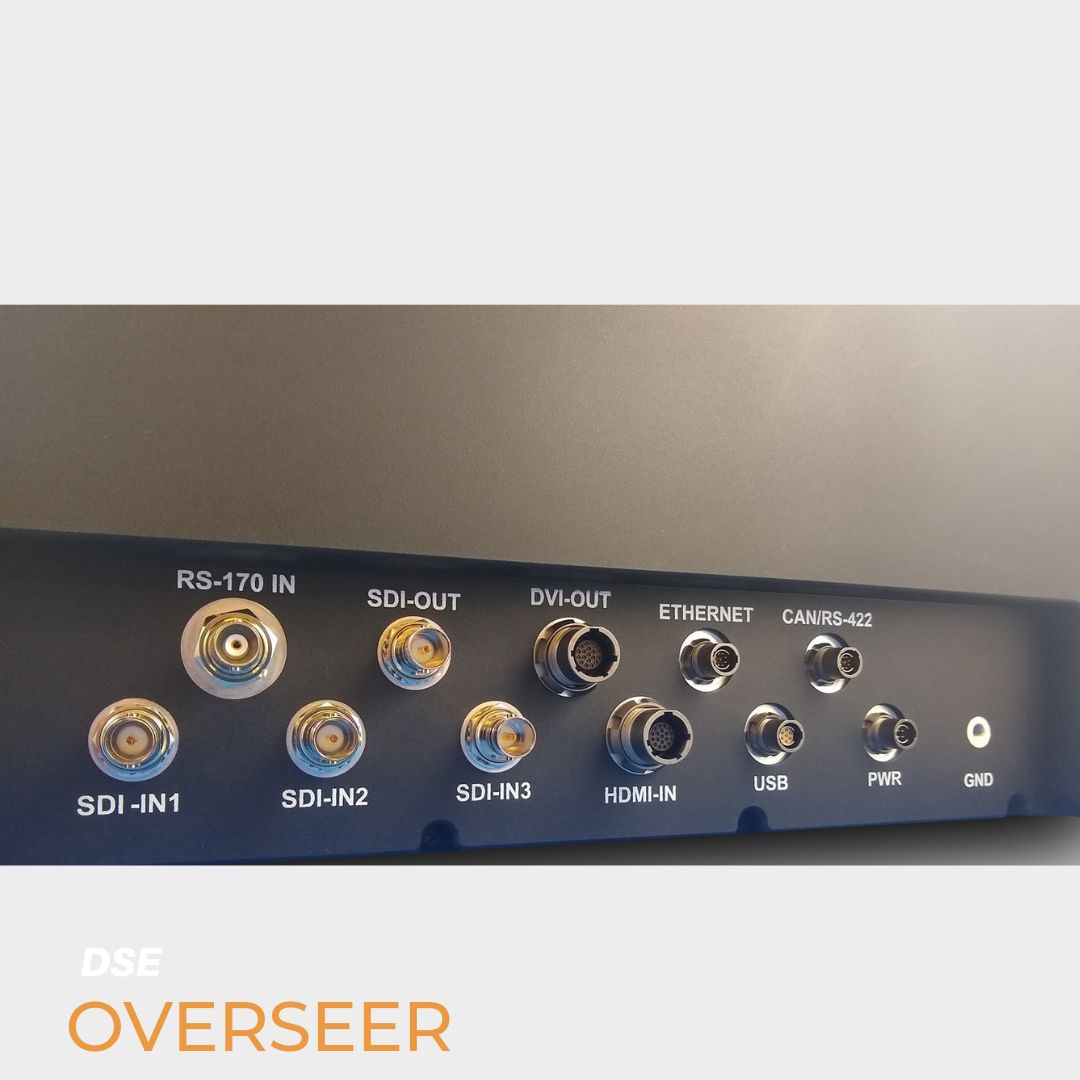

Video InputsSDI (3) 3G/HD/SD, HDMI (1), Composite Video (NTSC/PAL) (1), DVI-D(1)
Video OutputsSDI (1) 3G/HD/SD
CommunicationsGbE, CANBus, USB, RS-422
User InterfaceProgrammable Bezel Keys, Optional Touch Screen
OptionsNVIS Compliance/Compatibility, Mounting Configurations
Power Input10-36VDC
StandardsMIL-STD 810, MIL-STD 461, MIL-STD 1275, MIL-STD 704, IP67, DO-160
