Description

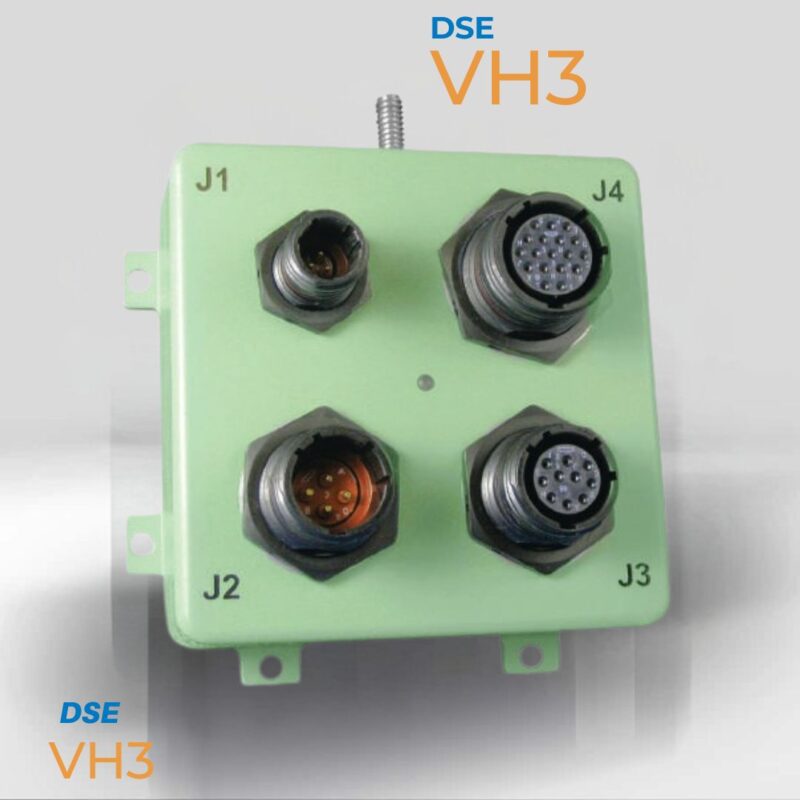

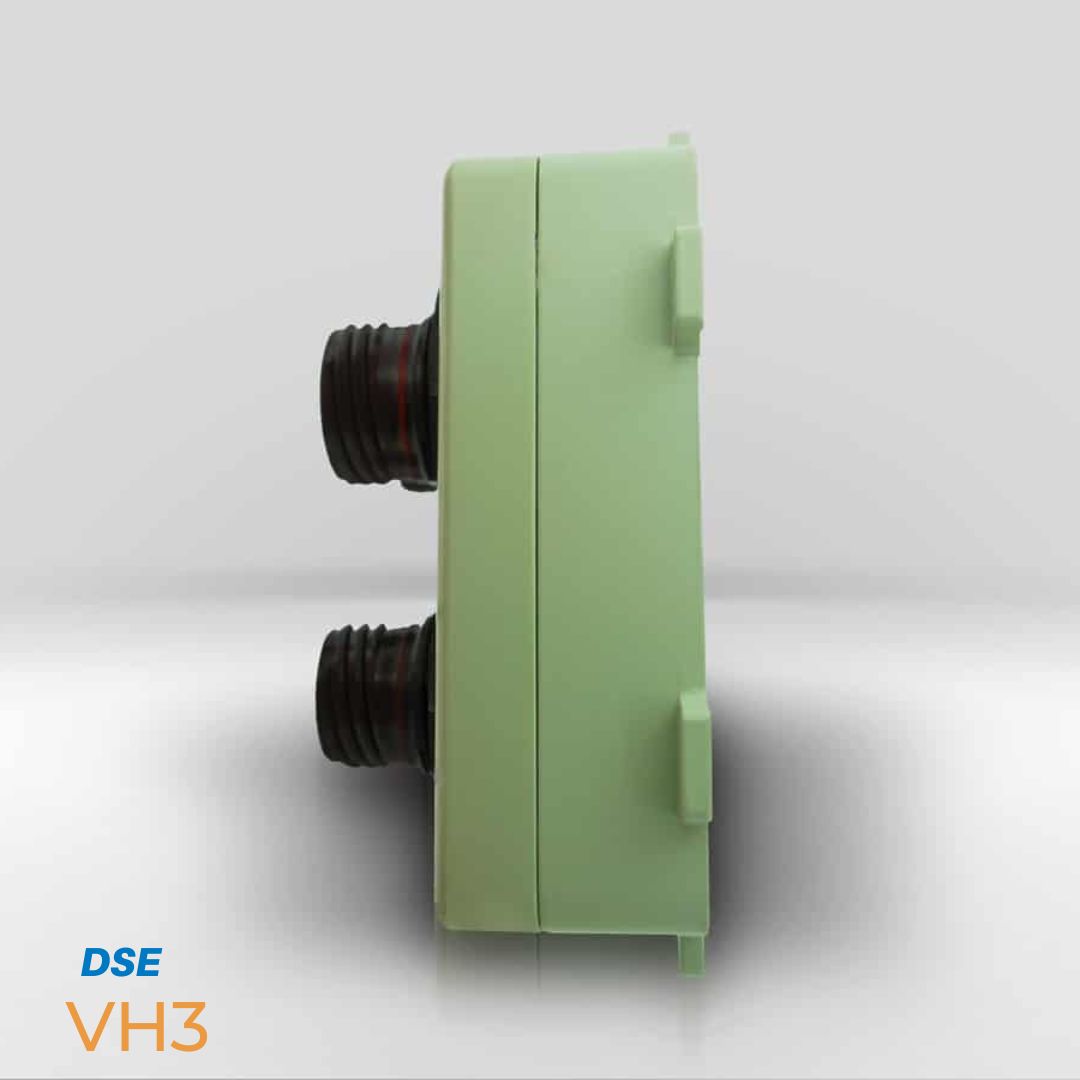

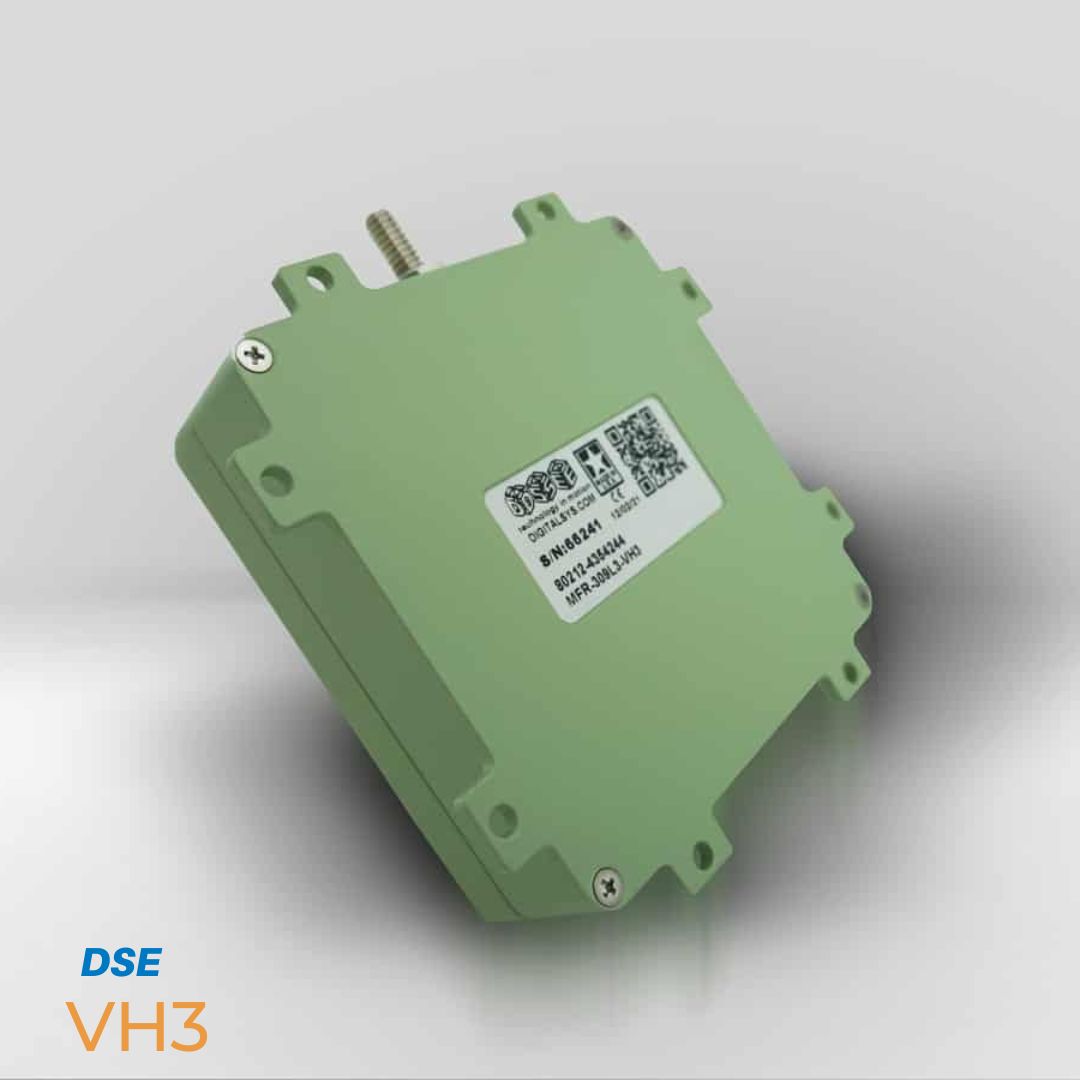

DSE- VH3
Video Distribution Hub
The MIL-SPEC VH3 video distribution system simplifies in-vehicle networking by allowing multiple analog camera feeds to be shared and routed efficiently to all crew members aboard. At less than 16 ounces and 45 cubic inches (4.62” x 4.62” x 2.1”), the VH3 is an optimal component for SWAP demanding applications.
Standard Key Features:
- RS-170 Inputs (3), NTSC or PAL
- RS-170 Outputs (8)
- 28 VDC Power Input
- 28 VDC Power Output
- 5 VDC Power Output
- Power ON LED Indicator
- IP67/NEMA 6 Enclosure
| Video Inputs | Composite Video Inputs (3), NTSC and PAL Formats |
| Video Outputs | (8), NTSC and PAL Formats |
| Dimensions | 4.62” x 4.62” x 2.1” |
| Weight | 0.94lbs |
| MIL-C Connectors | 38999 Series III |
| Housing | Milled Aluminum, Black Hard Anodized (CARC Finishes Available) |
| Power Input | 10-36VDC |
| Enclosure | IP67/NEMA 6 |
