Description
VHF/UHF/VHF Shipboard MULDIPOL™ Antenna
Series: D2000 VHF/UHFShipboard

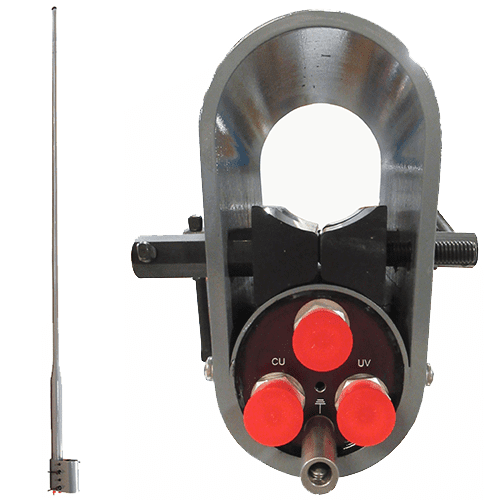

The D2218-M2G is an olive drab VHF/VHF/UHF frequency high gain MULDIPOL™ antenna specifically developed for air traffic control, ground-to-air, ground-air-ground, and NAVAL applications. This Shipboard model features a double military mast clamp for added stability and a multiple output design offering the operation of 3 stacked dipoles simultaneously within one radome. Both VHF input/outputs operate in the 116 to 150 MHz band, and the UHF at 225-400 MHz.
- Gain: 2.0 dBi
- Frequency: 2 x 116-150, 225-400MHz
- HPBW: 75°
- Isolation: 30
- VSWR Max: 2:1
- Driven Elements: 3
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- UHF Applied Power: 250 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Storage Temp: -40 – 158 F

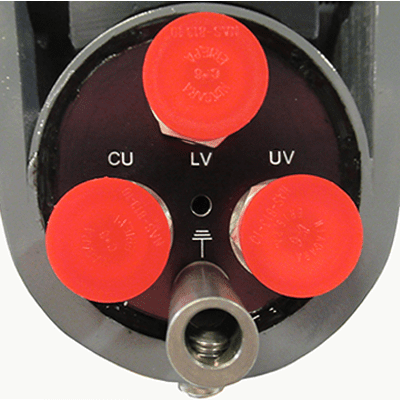

- Connectors: 3
- Number of Elements: 3
- Sectional: No
- Mast OD (in): 3
Dimensions: 169.4″ L (430.3 cm L)
Weight: 18.0 lbs
