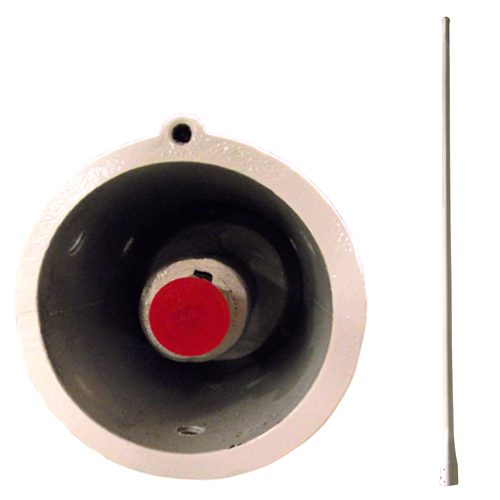

Model D5061A-1VHF/VHF High Gain Air Traffic Control Civil Aviation MULDIPOL™ Antenna
Series: D5000
The D5061A-1 is the upgraded equivalent to our D2261A-1. This VHF frequency high gain air traffic control civil aviation MULDIPOL™ antenna is perfect for ground-air-ground, air traffic control and base communications applications.
TACO’S D5000 Series MULDIPOL™ antennas are omni-directional, vertically polarized Air Traffic Control civil aviation dipoles designed for ground-to-air communications, with various array configurations available, including custom designs.
Other D5061A-1 Models:
D5061A-1-L – 4″ Lightning Rod model.
D5061-A-1 Key Specs:
- Gain: 4.0 dBi
- Frequency: 118-137MHz
- HPBW: 40°
- VSWR: 1.9 Max / 1.5 Typical
- Driven Elements: 1
- Impedance: 50 ohm
- Polarization: Vertical
- Cross Pol. Suppression: 20
- Connector Type: N Female
- Max Power: 600 watts
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 1
- Number of Elements: 2
- Sectional: No
- NSN: 5985-01-050-7525
- Mast OD (in): 1.66-2.875
Dimensions: 137.3″ L (348.7 cm L)
Weight: 15.5 lbs
Shipping Dimensions: 141.8″ L x 4.5″ W x 4.5″ H
Shipping Weight: 22.0 lbs
