Description

Key Features :

  • Outstanding performance (JASPER LAKE N5100 processor)
  • Excellent Visibility (8-inch screen with 1000-Nits high)
  • Easy Connection (4G LTE, dual-band Wi-Fi, Bluetooth 5.0 and GPS/Glonass/Beidou)
  • Stable Power
  • Battery-free Mode (support battery-free mode)

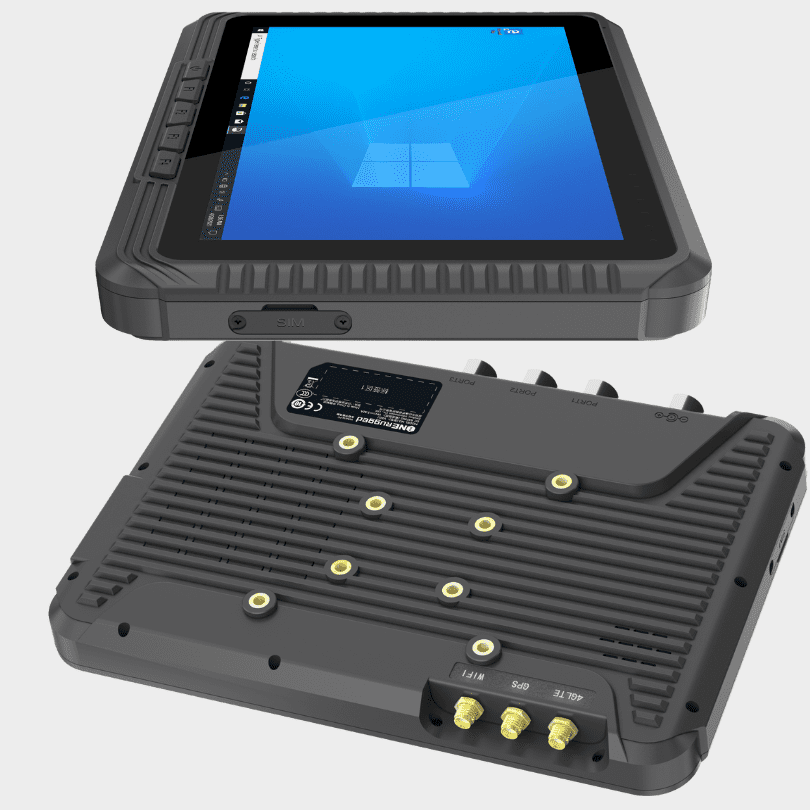

  • Flexible Extension (Multiple aviation plug ,USB/DB9/CAN/LAN)
  • Easy Instillation
  • Robust (IP65 dust and waterproof/vibration and extreme temp)

DESCRIPTION

Our PC, which is mounted in vehicles, is designed to meet the highest standards as a standalone device. It includes an integrated touchscreen and a range of features that make it suitable for use in harsh environments, both indoors and outdoors. The ONERugged grade ensures that it is reliable and long-lasting for marine, in-vehicle, train, bus, car, industrial automation, and digital signage applications, even under rugged environmental conditions. It can withstand extended temperatures, wide range/isolated power input, vibrations, shock, dust and dirt, liquids, high humidity, and high air pressure, and is certified by independent laboratories for compliance with these specifications. The ONERugged vehicle PC also integrates 4G LTE functionality for easy collection and transformation of vehicle data, allowing managers to send instructions and follow-up arrangements efficiently. Additionally, the built-in speakers enable clear communication in noisy environments and prevent misjudgment of instructions.

Capable of diverse communication protocols guarantees seamless connection throughout your entire shift. Multi-satellite running GPS/Glonass/Beidou, the rod antenna and vehicle mushroom antenna, which provides real-time tracking to your vehicle and asset management. Optional NFC quick recognition function to meet the different needs in any workplace.

APPEARANCE

Dimensions: 218.1×154.5×23.0mm
Weight: 620g
Display: Size:



Type: LCD
Size: 8 & 10.1 inch 16:10
Resolution:  800*1280 IPS
Brightness: 1000cd/㎡
Touch Panel: 5-point tempered glass capacitive screen G+G, hardness 7H

PERFORMANCE

Processor: Intel JASPER LAKE N5100 Max 2.8GHz
Operating System: Windows 10 Pro
Memory+Storage: RAM: 8GB (LPDDR3) ROM: 128GB (EMMC)
Battery (optional): Built-in polymer lithium-ion battery, 1000mAh/7.4V
RTC Battery: Built-in RTC battery
Power: Power adapter cable (M12-8 power port to φ5.5 power port) Optional: φ5.5 adapter (input AC 100V~240V 50Hz/60Hz, output DC 19V/3.42A)

WIRELESS

WiFi: 802.11 (a/b/g/n/ac), 2.4G+5.8G dual frequency Standard WiFi rod antenna
WAN (optional): 4G Optional 4G rod antenna
Bluetooth: Bluetooth 5.0
GNSS: GPS+GLONASS, optional Beidou Standard GPS rod antenna
NFC (optional)

RUGGEDNESS

IP Ratings: IP65
Temperature: Working temperature: -20 °C to 60 °C Storage temperature: -30 °C to 70 °C
ESD Protection: ±15kV air discharge ±8kV contact discharge
ONERugged 8″ Vehicle Mount PC – V80J with Options

ONERugged 8″ Vehicle Mount PC – V80J with Options

$58.97$1,422.72

0 In Stock
