Description
GENERAL CHARACTERISTICS
| INSERTION LOSS (DB) | <0.3 dB |
|---|---|
| DIMENSIONS | 5.45 x 3.90 x 1.77 in |
| BAND 2 | 3600 MHz |
| BAND 3 | 5400 MHz |
| BAND 1 | 1800 MHz |
| BAND 3 BANDWIDTH | 60 MHz |
| BAND 2 BANDWIDTH | 50 MHz |
| BAND 1 BANDWIDTH | 40 MHz |
| ISOLATION | >100 dB |
Multiplexers, can be considered as duplexers (2 bands), triplexers (three bands), quadruplexers ( 4 bands), up to as manu as 12 bands. They provide a cost-effective solution for carriers,or communication systems operating in multiple frequency bands multiplexing both transmit and receive paths into a single antenna (or vice versa), or split signals from a single antenna into multiple base stations, allowing the system to accommodate a greater number of operating bands.

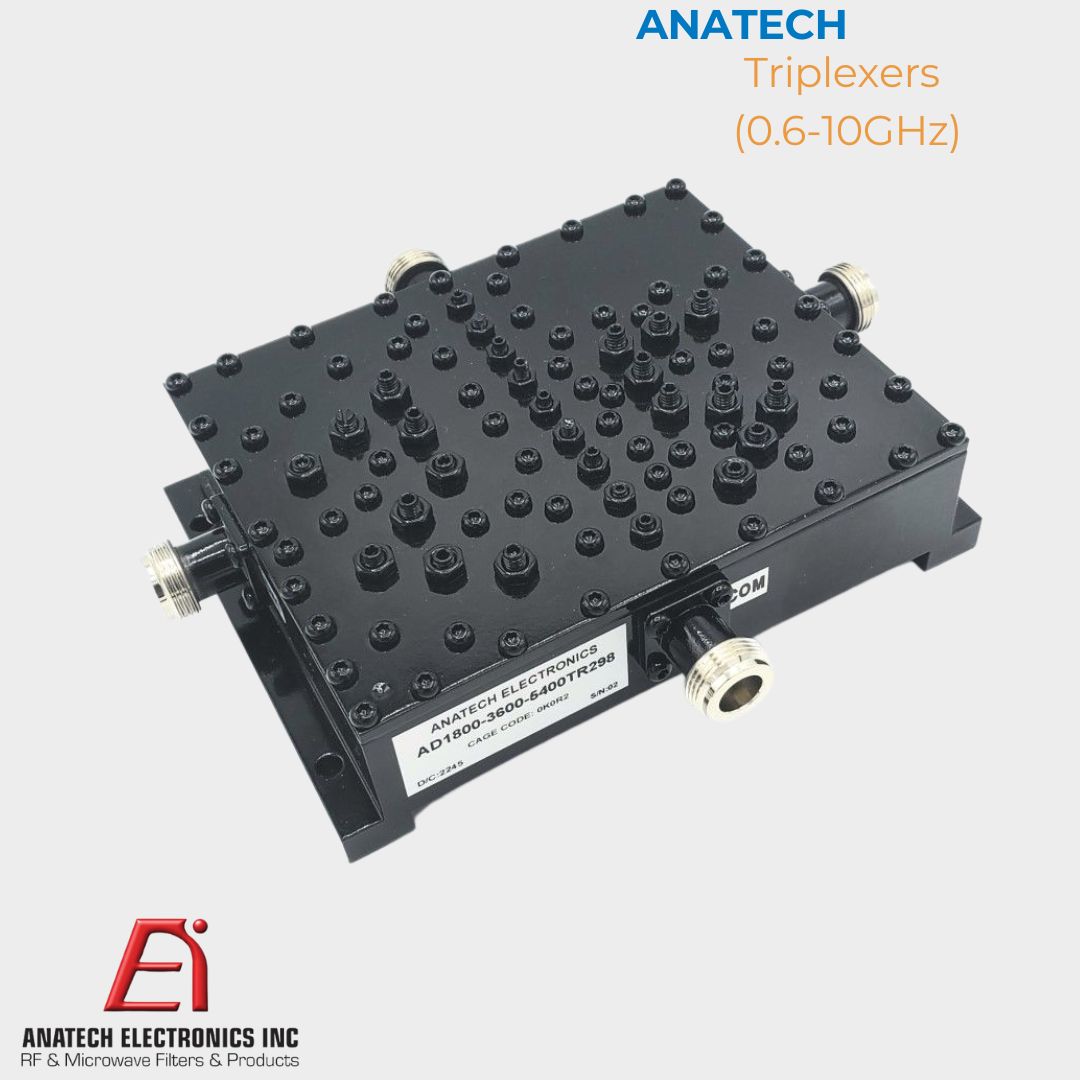

Our standard triplexers combines or split 3 communication bands, in many wireless bands such as GSM, PCS, LTE, UMTS, WCDMA, and many more. We have an extensive list of standard products to choose from. All listed according to frequency range, and basic specifications. Full datasheets can be downloaded for each products.
Click Below If you need Custom Design
