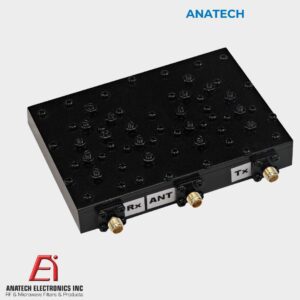

ANATECH - UMTS 1985-2970MHZ QUAD-BAND COMBINER
ANATECH - UMTS 1985-2970MHZ QUAD-BAND COMBINER - Image 2

ANATECH – UMTS 1985-2970MHZ QUAD-BAND COMBINER

Availability: In Stock

  • Please Click the Spec Matched RF Filter below to help you find the best Product that will suit your application
Click HERE – Spec Matched RF Filters
  • Choose from our extensive list of standard product
Click HERE
  •  Couldn’t find the right Multiplexer for you?

    Let Us Help you!

      Click HERE
Compare
Add to Wishlist
Enquire about this product

Product Enquiry

Compare
SKU: AM2000-2300-2620-2920QP179 Category: Tags: , , , ,

Description

GENERAL CHARACTERISTICS

BAND 5 N/A
BAND 4 REJECTION 70 dB @ 2870-2970 MHz
BAND 4 INSERTION LOSS <1.5 dB
BAND 4 2285-2315MHz
BAND 3 REJECTION 70 dB @ 2870-2970 MHz
BAND 3 INSERTION LOSS <1.5 dB
BAND 3 2285-2315MHz
BAND 1 INSERTION LOSS <1.5 dB
BAND 1 REJECTION 70 dB @ 2619-2621, 2285-2315, 1985-2015 MHz
BAND 2 REJECTION 70 dB @ 2870-2970 MHz
BAND 2 INSERTION LOSS <1.5 dB

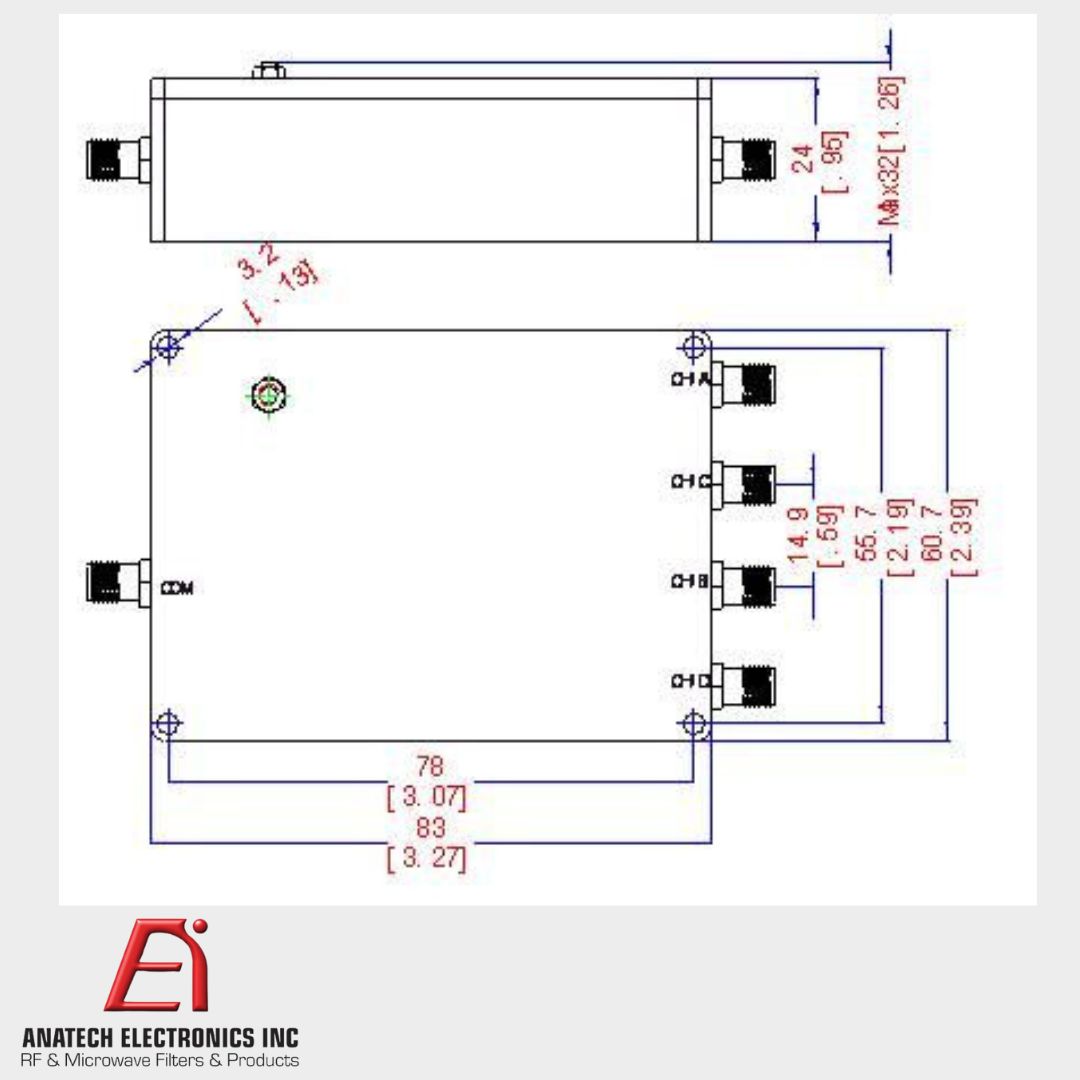

DIMENSIONS 3.27 x 2.39 x 1.26 Inches
CONNECTOR TYPE SMA (F)
BAND 1 2870-2970 MHz
BAND 2 2619-2621 MHz

UMTS 1985-2970MHZ QUAD-BAND COMBINER

ANATECH – UMTS 1985-2970MHZ QUAD-BAND COMBINER

ANATECH – UMTS 1985-2970MHZ QUAD-BAND COMBINER

In Stock
