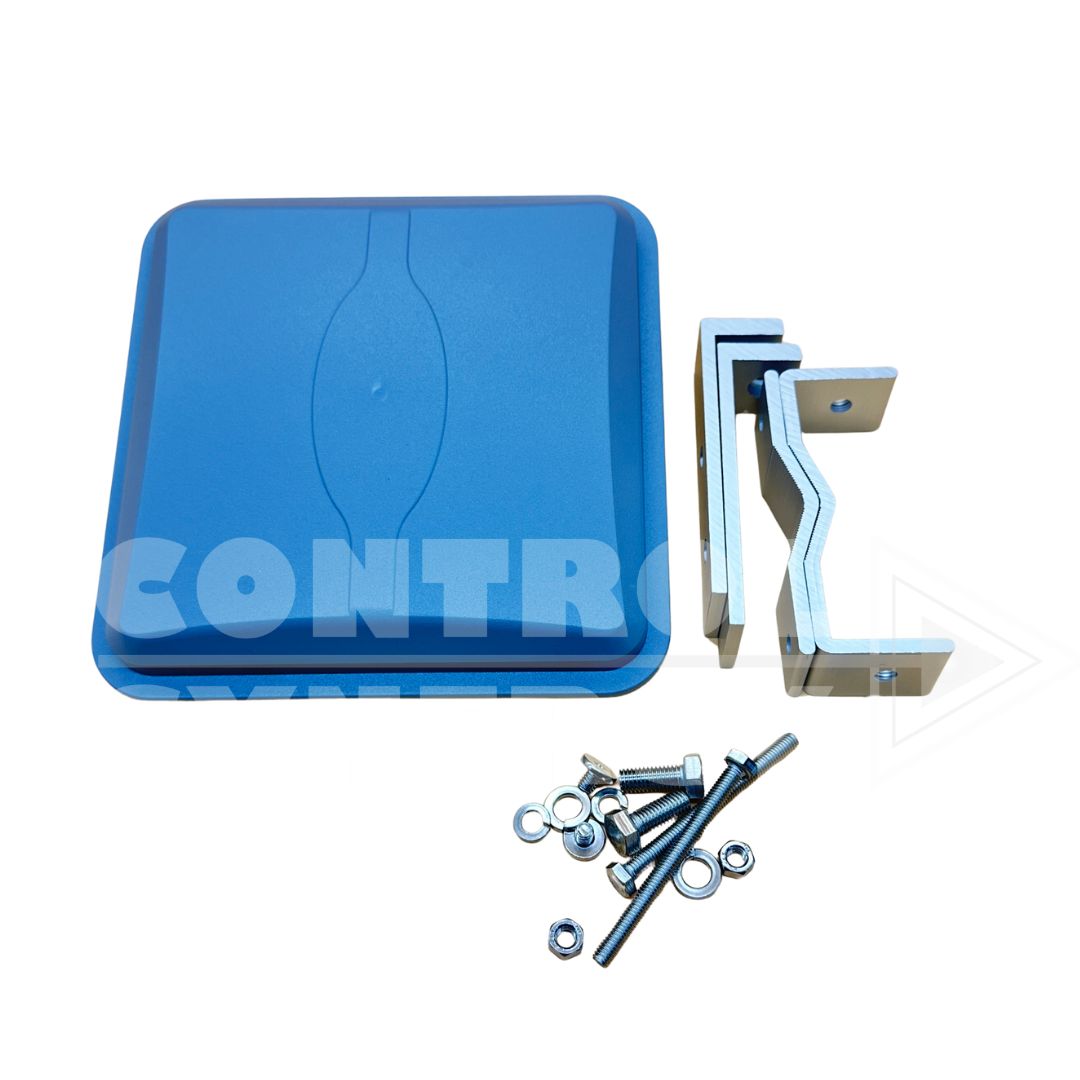

The Laird PA58-19 is a wide-band flat panel directional antenna built for 5 GHz wireless LAN, 802.11a, WiMAX, and OEM wireless data applications operating across 5150–5825MHz. With 19dBi gain and a 16° horizontal/vertical beamwidth, it delivers strong directional signal focus in a thin, low-profile package. The UV-resistant grey ABS radome and aluminium backplate are built for outdoor, weatherproof service, while the die-cast aluminium bracket gives ±45° tilt adjustment for precise alignment and stainless steel hardware ensures long service life. It can be pole-mounted or surface-mounted, and supports both horizontal and vertical polarisation. Rated for -40°C to +70°C operation with a 100W input power handling and 50-ohm impedance, the PA58-19 is well suited to industrial, agricultural, and remote wireless link deployments across Australia. It comes standard with an integral N female connector for direct RF connection.

Specs: Front-to-back ratio 30dB | Cross polarisation 25dB | VSWR 2.0:1 (5150–5350MHz), 1.5:1 (5470–5825MHz) | Weight 0.5kg | Dimensions 190 x 190 x 20mm | Pole size 25–64mm
