Description

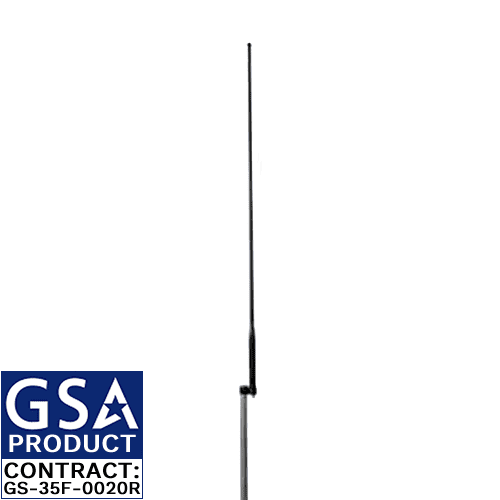

Model D2212VHF/VHF Air Traffic Control MULDIPOL™ Omni Military Antenna
Series: D2000D2000 VHF
The D2212 is a green VHF/VHF frequency air traffic control military MULDIPOL™ omni-directional antenna for ground-air-ground, air traffic control and base communications applications with both input/outputs operating in the 116 to 150 MHz frequency band.
TACO Antenna’s multiple output antenna design offers the operation of up to four stacked dipoles operating simultaneously within one radome.
Other D2212 Models:
D2212-A – VHF/VHF Muldipol operating between 150-174 MHz
D2212A-M2G – VHF/VHF Shipboard Muldipol operating between 150-174 MHz
D2212-OL-LED-EU-G – LED Obstruction Light model.

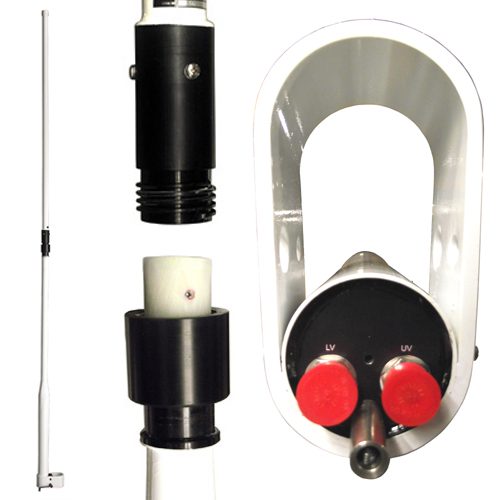

D2212-S – 2 Pieces Sectional model.
D2212 Key Specs:
- Gain: 2 dBi
- Frequency: 116-150MHz
- HPBW: 75°
- Isolation: 30
- VSWR Max: 2:1
- Impedance: 50 ohm
- Polarization: Vertical
- Connector Type: N Female
- VHF Applied Power: 350 Continuous
- Operating Temp: -40 – 158 F (-40 – 70 C)
- Connectors: 2
- Number of Elements: 2
- Sectional: No
- NSN: 5985-01-315-7443
- Mast OD (in): 3
Dimensions: 153.4″ L (389.6 cm L)
Weight: 14 lbs
