MISCACC,P-MOUNT, NMO TO NF

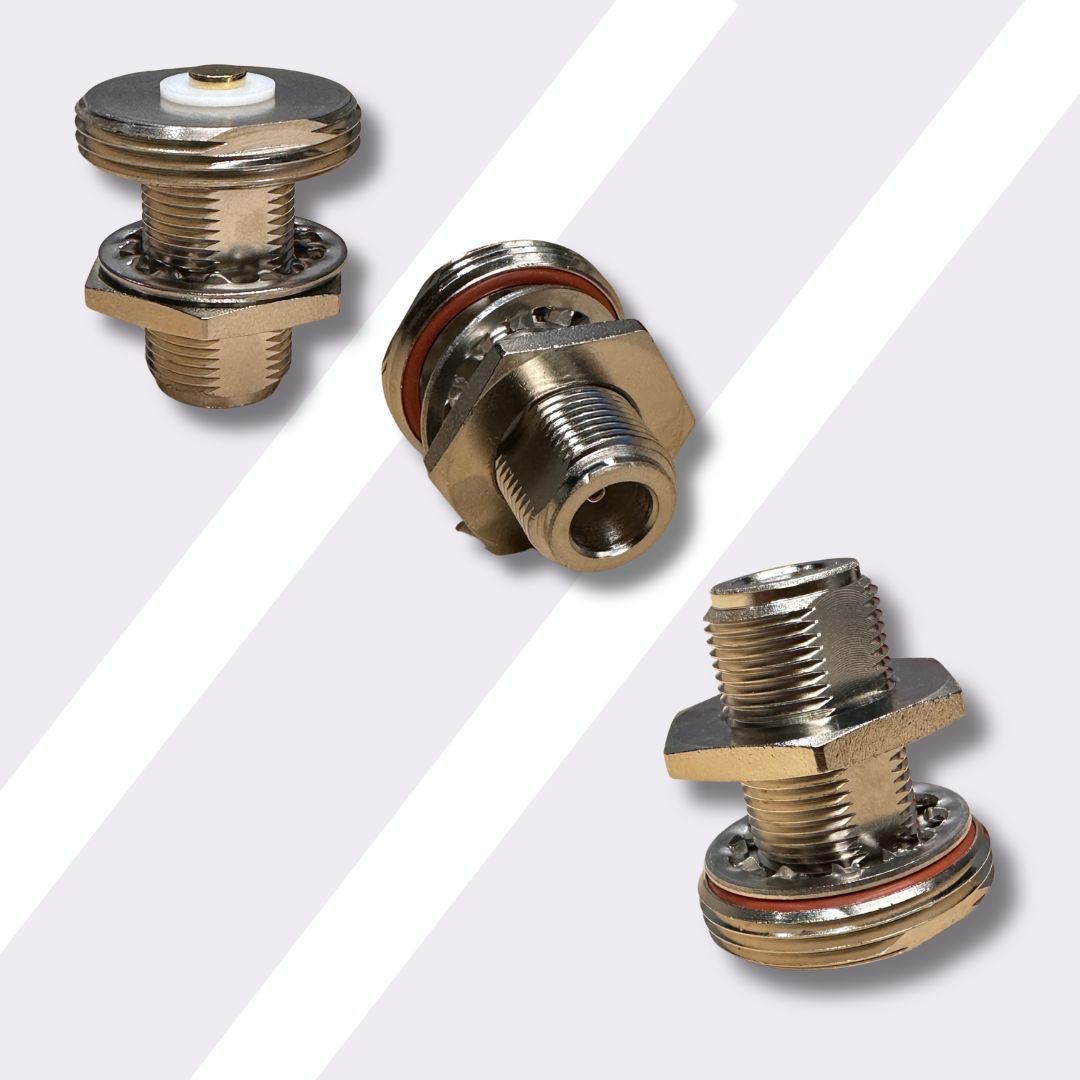

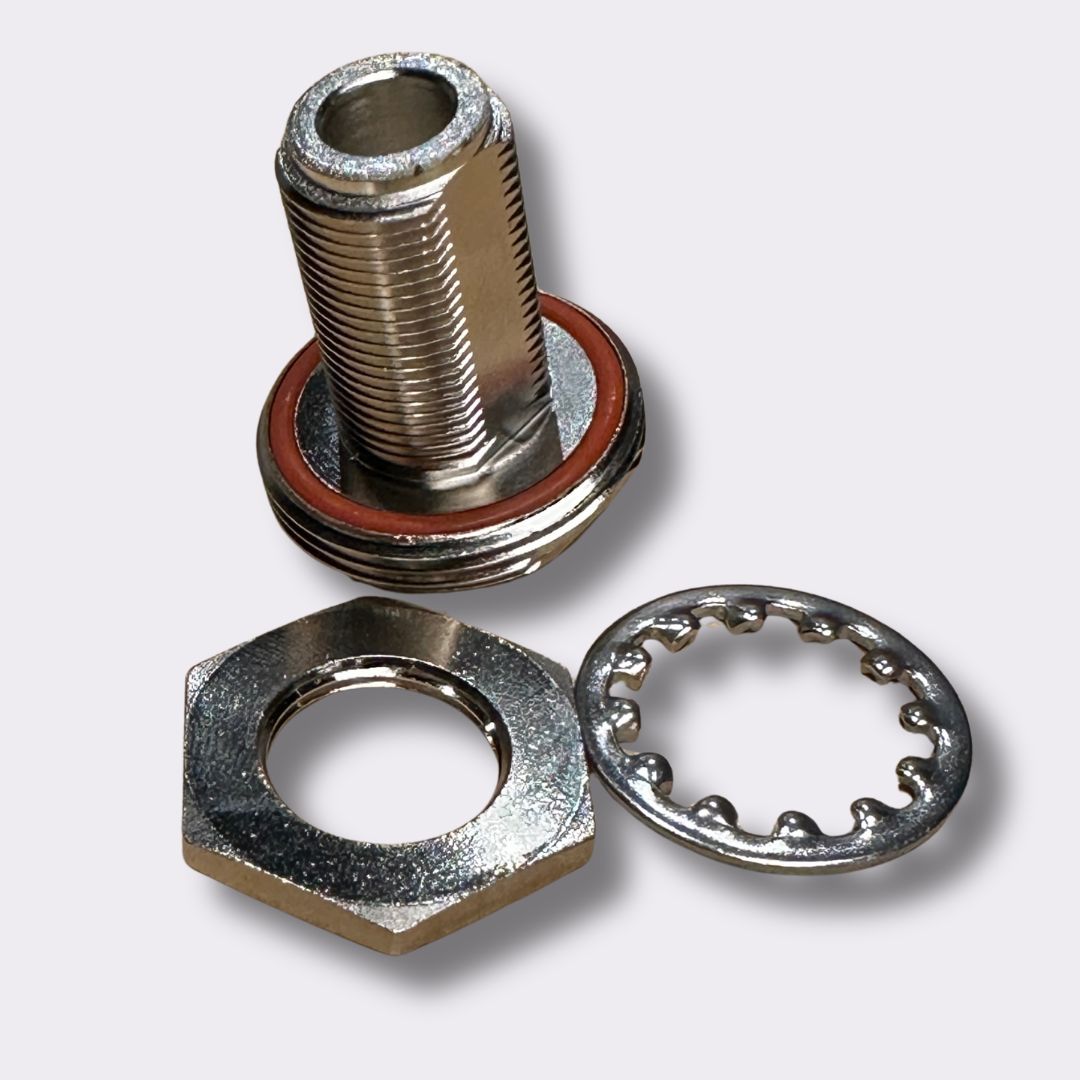

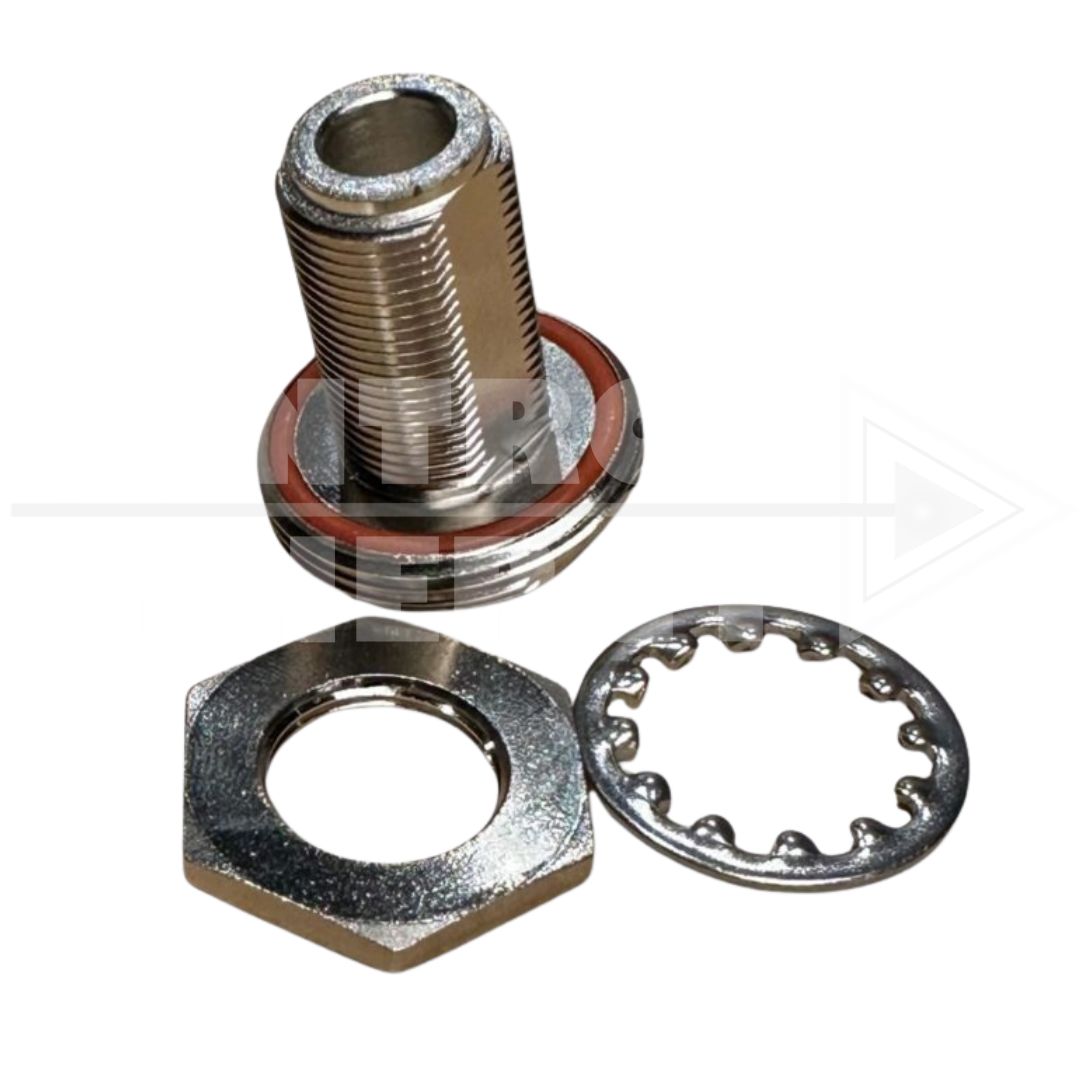

Solve complex mounting challenges with the TE Connectivity MT58NMONF, available at Control Synergy. This heavy-duty NMO mount is specifically engineered for “thick-roof” applications where standard mounts fall short. Capable of installing through surfaces up to 1/2 inch (12.7mm) thick, it is the ideal solution for modern trucks, heavy machinery, and industrial enclosures with insulated or double-walled construction.

The MT58NMONF is built for long-term industrial reliability. Constructed from high-grade brass with a permanent N-Female termination, it allows for the use of high-performance, low-loss coaxial cables to ensure your JLT vehicle-mount computers or mobile radios maintain maximum signal integrity. Whether you are installing on a fiberglass canopy or a reinforced equipment cab, trust Control Synergy for the rugged, professional-grade mounting hardware required for a permanent and watertight antenna installation.

Key Specifications:

• Part Number: MT58NMONF (Legacy Laird Technology).

• Mounting Type: NMO (New Motorola) Thick Hole Mount.

• Max Surface Thickness: 0.5 inches (12.7mm).

• Connector: Integrated N-Type Female.

• Material: Solid brass construction with gold-plated contact pin.

• Application: Ideal for double-walled cabs, fiberglass roofs, and thick enclosures.
