Description
The XetaWave XETA-10NNNNA-IOx4 is the volume-discounted SKU for the board-level XETA-10NNNNA-IO industrial I/O module and terminal server, designed for OEM integration and direct connection of sensors, actuators, relays, valves, alarms, and legacy devices to Ethernet/IP-based SCADA and telemetry networks. Order 4 or more units to qualify for special volume pricing – an excellent choice for expanding distributed monitoring/control systems, multi-site deployments, spares inventory, or cost-effective upgrades across multiple locations.

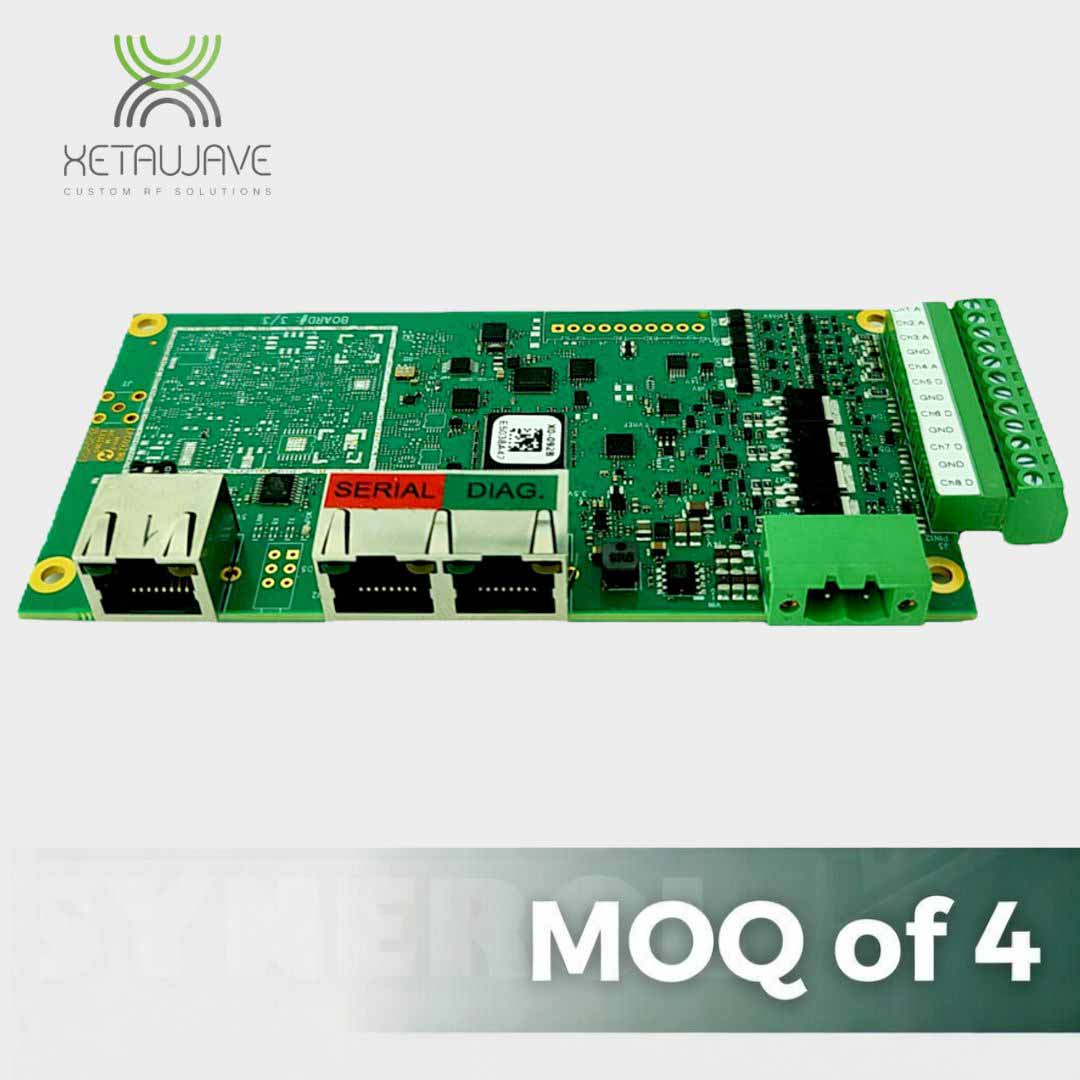

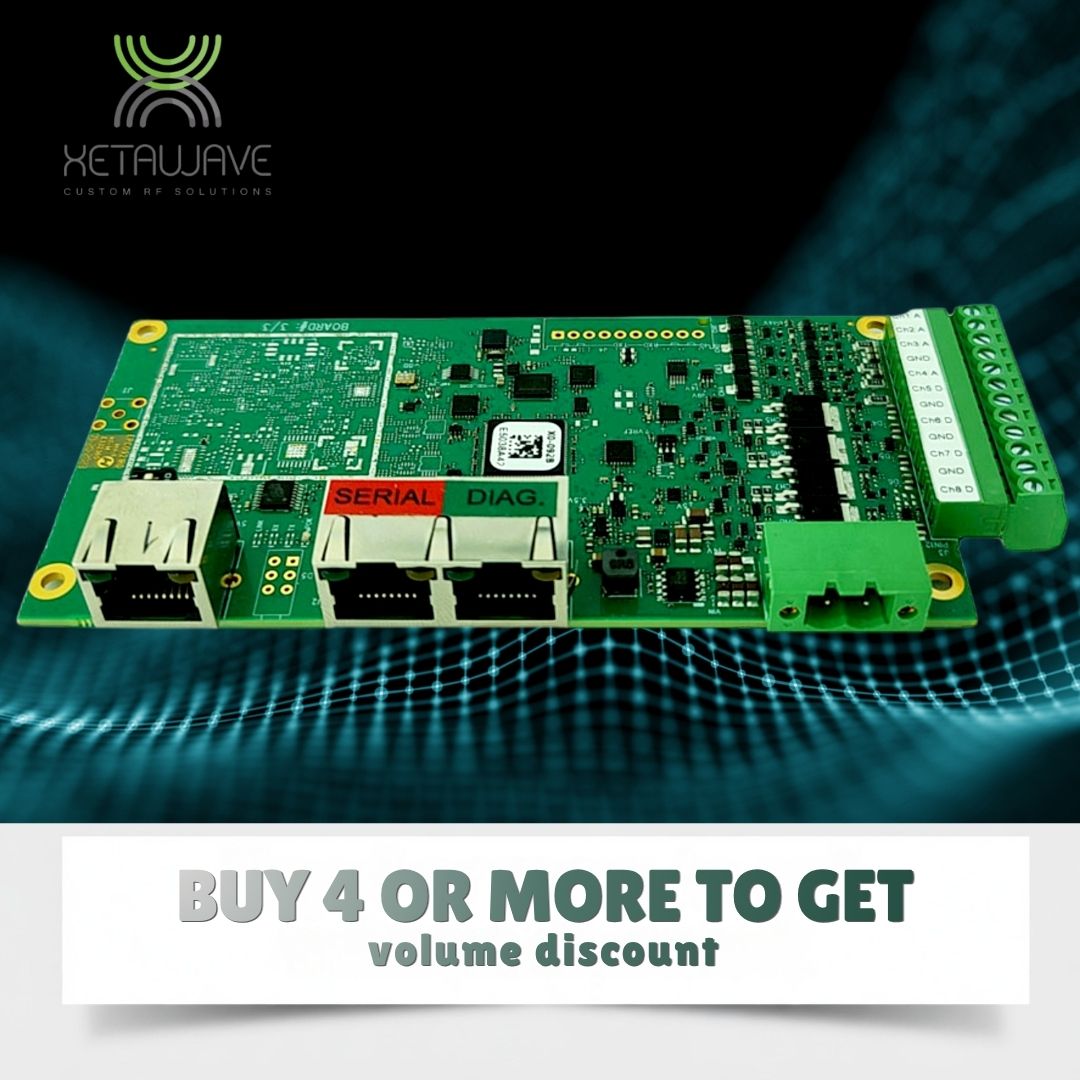

This compact board-level module (for embedding in custom enclosures) simplifies I/O bridging without requiring full enclosures or additional gateways:
- Processor and OS: 300 MHz ARM Cortex-A8 processor, 1GB RAM, 4 GB flash storage, running open-source Debian Linux for custom applications, protocol support, and long-term flexibility.
- Connectivity: 1× 10/100 Ethernet port (RJ45), 1× RS-232/422/485 serial port (up to 1 Mbps), 1× USB 2.0 port (micro USB On-the-Go).
- Programmable I/O: 8 multi-function channels configurable as analog inputs/outputs (1-5V or 4-20mA), digital inputs/outputs, counters (up to 10 kHz), and more – supports wet/dry contacts, voltage/current sensing, programmable power-up/fail-safe states, and direct control of field devices.
- Terminal & Bridge Functions: TCP/UDP server/client modes for serial tunnelling, Modbus RTU-to-TCP bridge, data concentrator (aggregates multiple devices into unified maps or MQTT/Sparkplug B topics), and wire replacement (replicates I/O signals over Ethernet or external wireless links).
- Form Factor and Compliance: Board-level design for OEM embedding (no built-in enclosure; rugged/plastic enclosures available separately), wide supply voltage (10-32V DC), reverse polarity protection, Class 1 Div 2 certified for hazardous locations, FCC/IC compliant, manufactured in the USA.
- Applications: Ideal for oil & gas wellhead monitoring, water/wastewater pump/valve actuation, utilities substation I/O, agriculture sensor networks, factory automation, and any SCADA setup needing cost-effective, distributed analog/digital I/O in embedded systems.
The XETA-10 series eliminates complex wiring and proprietary gateways by providing open, Linux-based I/O bridging and data handling. It integrates seamlessly with XetaWave radios or existing Ethernet infrastructure for reliable, future-proof industrial communications.
MOQ Note: The XETA-10NNNNA-IOx4 SKU is structured for volume orders – purchase 4 or more units of this model to receive the discounted per-unit pricing. Contact Us for exact tiered pricing, project quotes, or to confirm current availability.
