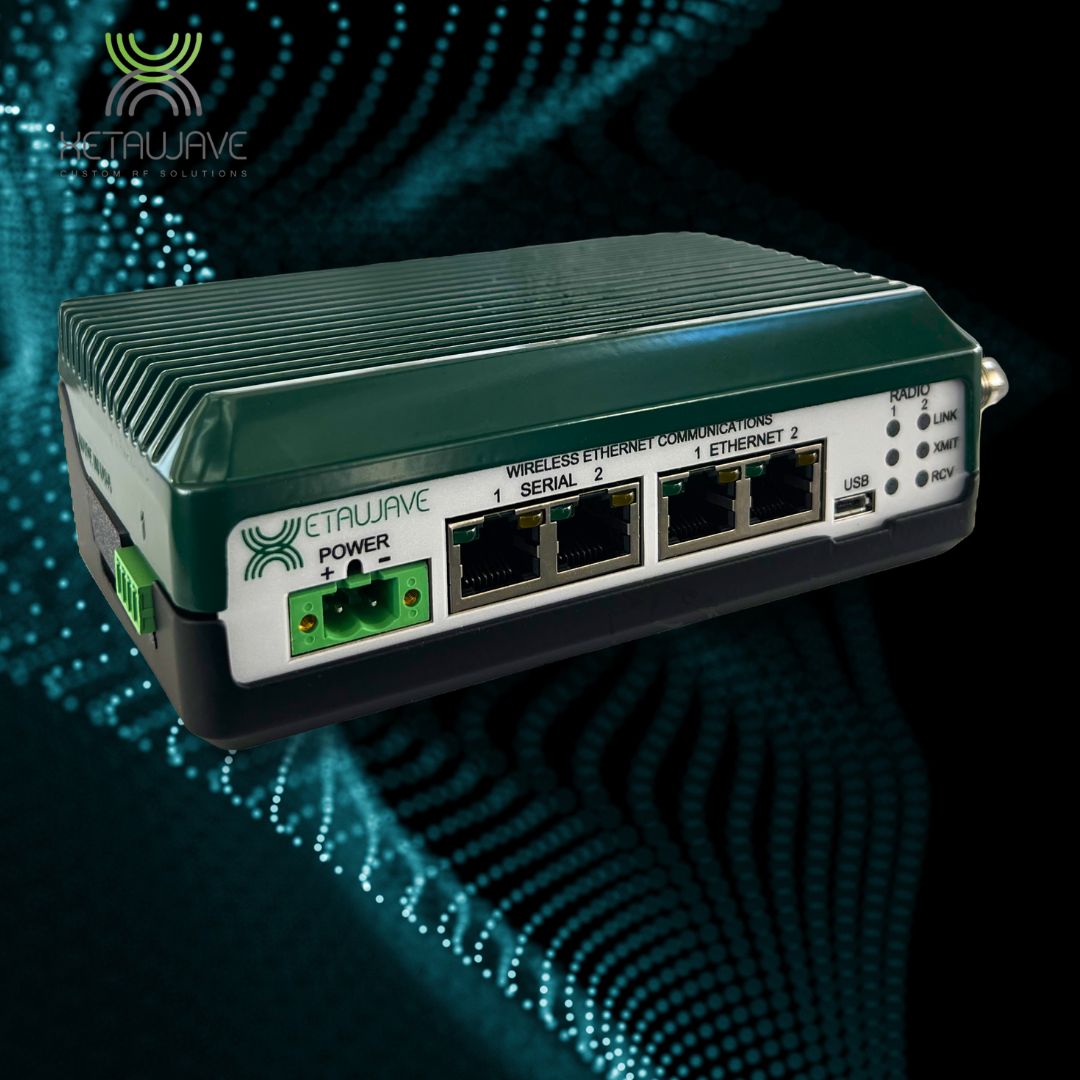

The XetaWave XETA4B-22MMDFB is a premium industrial software-defined radio engineered for licensed 450-470 MHz UHF MAS networks, where protected spectrum, long-range reliability and deterministic performance are essential. Housed in a rugged metal enclosure and built on an open Debian Linux platform, it represents XetaWave’s latest generation of industrial radio technology and uses the patented Dual Decode Digital Architecture to deliver significantly improved receiver performance in congested and noisy RF environments.

For organisations operating licensed UHF telemetry networks, the XETA4B-22MMDFB provides a modern, fully supported migration path away from ageing narrowband radio fleets. It protects existing licensed spectrum investment while adding contemporary IP networking, embedded Linux computing, AES encryption and comprehensive remote diagnostics, making it well suited to retrofit, replacement, expansion and network modernisation projects across water, utilities, energy and resources.

Key Features

• Licensed 450-470 MHz UHF MAS operation
• Dual Decode Digital Architecture for superior receiver performance
• Over-the-air data rates from 5 kbps to 216 kbps, with additional throughput via payload compression and Enhanced MultiPoint
• Channel bandwidths of 6.25, 12.5, 25 and 50 kHz
• Adjustable RF output power up to 10 Watts (+40 dBm)
• Modulation schemes including MSK, QPSK, 8PSK, 16QAM, 32QAM and 64QAM
• AES 128-bit and 256-bit over-the-air encryption
• Dual 10/100 Ethernet ports
• Dual RS-232 / RS-422 / RS-485 serial ports
• 1 x USB 2.0 port
• 2 digital inputs
• Debian Linux operating system
• 300 MHz ARM Cortex-A8 processor, 256 MB RAM, 4 GB flash
• MultiSpeed multipoint — endpoints operating at different RF data rates on a single Access Point
• Enhanced MultiPoint (EMP) for higher throughput and lower latency
• Master Messaging Service (MMS) synchronisation
• Point-to-point, point-to-multipoint, enhanced multipoint and peer-to-peer networking
• Over-the-air compatible across XetaWave uTasker, Linux, Debian and XetaEdge families
• Compatible with legacy MDS 4710/4790 and SD4 master radios
• Class 1 Division 2 certified, rated -40°C to +60°C
• Remote diagnostics of RSSI, noise, voltage and temperature via SNMP and Modbus
• Modbus RTU and Modbus TCP support
• Range exceeding 70 miles line of sight in optimal conditions
• Rugged metal enclosure for harsh industrial environments
• Designed and manufactured in the USA

Licensed Spectrum for Mission-Critical Networks

Operating in licensed UHF spectrum gives network owners protected channels, predictable latency and resilience against congestion — a decisive advantage for critical infrastructure where unlicensed bands are becoming increasingly crowded. Narrowband channel plans from 6.25 kHz through to 50 kHz are supported, allowing operators to maximise the value of existing licence holdings while lifting network throughput well beyond what legacy narrowband equipment can deliver.

Dual Ethernet and dual serial interfaces allow legacy serial RTUs and modern IP-based equipment to operate across the same network, which is critical during phased upgrades where sites are migrated progressively rather than all at once.

An Edge Computing Platform, Not Just a Radio

The open Debian Linux environment turns the XETA4B-22MMDFB into a capable industrial edge computer. Third-party and custom applications can be hosted directly on the radio, enabling protocol conversion, local data processing, alarm logic, data buffering and integration with existing SCADA and historian platforms — reducing the need for additional field hardware at each site.

Ideal Applications

• Water and wastewater SCADA networks
• Pump station and reservoir telemetry
• Electricity utility and substation monitoring
• Pipeline, oil and gas remote monitoring
• Mining site communications
• Irrigation and agricultural water management
• Renewable energy and battery storage monitoring
• Environmental and flood monitoring
• Industrial automation and process control
• Hazardous area installations requiring Class 1 Division 2 certification

Designed for Network Modernisation

Many licensed UHF telemetry networks across Australia are still running on radio platforms approaching or past end of support, leaving operators exposed on spares, security and serviceability. Backward compatibility with legacy MAS master radios means the XETA4B-22MMDFB can be introduced into an existing network incrementally, allowing utilities and industrial operators to modernise site by site while maintaining continuous operation.

Whether expanding an existing licensed network, replacing obsolete narrowband radios, or building a new UHF telemetry system from the ground up, the XETA4B-22MMDFB delivers the performance, durability and long-term supportability required for long-life critical infrastructure.
