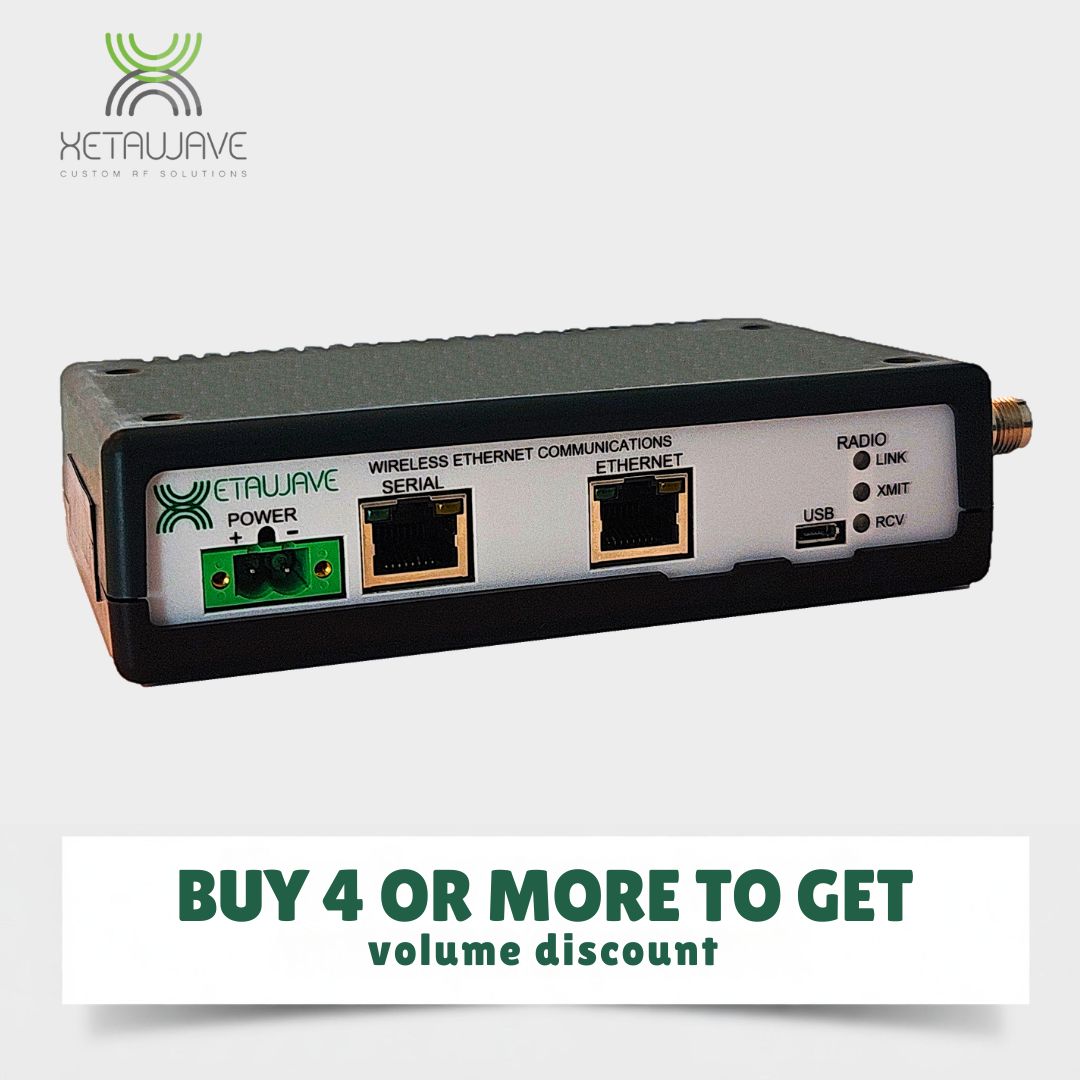

The XetaWave XETA9-11IPDFC is a compact, plastic-enclosed industrial-grade software-defined radio (SDR) optimized for unlicensed 902-928 MHz ISM band applications. This lightweight unit delivers reliable, high-performance wireless connectivity for SCADA, telemetry, remote monitoring, and industrial automation where license-free operation and cost-effectiveness are priorities.
Key features include:
- Processor and OS: 300 MHz ARM Cortex-A8 processor with 1 GB RAM and 4 GB flash storage, running open-source Debian Linux for easy customization, app hosting, protocol integration (e.g., Modbus RTU/TCP), and future updates.
- Connectivity: 1x 10/100 Ethernet port, 1x RS-232/422/485 serial port, 1x USB port for versatile wired integration.
- RF Performance: Supports FHSS and DTS modes with modulations from MSK to 64QAM, delivering over-the-air data rates from ~57 kbps (narrow channels) up to 5.3 Mbps (wider channels/high modulations). Adjustable transmit power up to 1W (+30 dBm) enables exceptional range (70+ miles LOS) and noise immunity in challenging environments.
- Unique Capabilities: Multi-speed multipoint networks, MMS (Master Messaging Service) synchronization, seamless roaming, AES 128/256-bit encryption, payload compression, and support for point-to-point, point-to-multipoint, enhanced multipoint, peer-to-peer, and mesh topologies.
- Enclosure and Durability: Lightweight plastic housing (approx. 182g) suitable for non-harsh installations, FCC/IC compliant, manufactured in the USA.
- Applications: Ideal for agriculture telemetry, water/wastewater monitoring, oil & gas remote sites, utilities, factory automation, and any setup needing unlicensed 900 MHz wireless without the complexity or cost of licensed bands.
