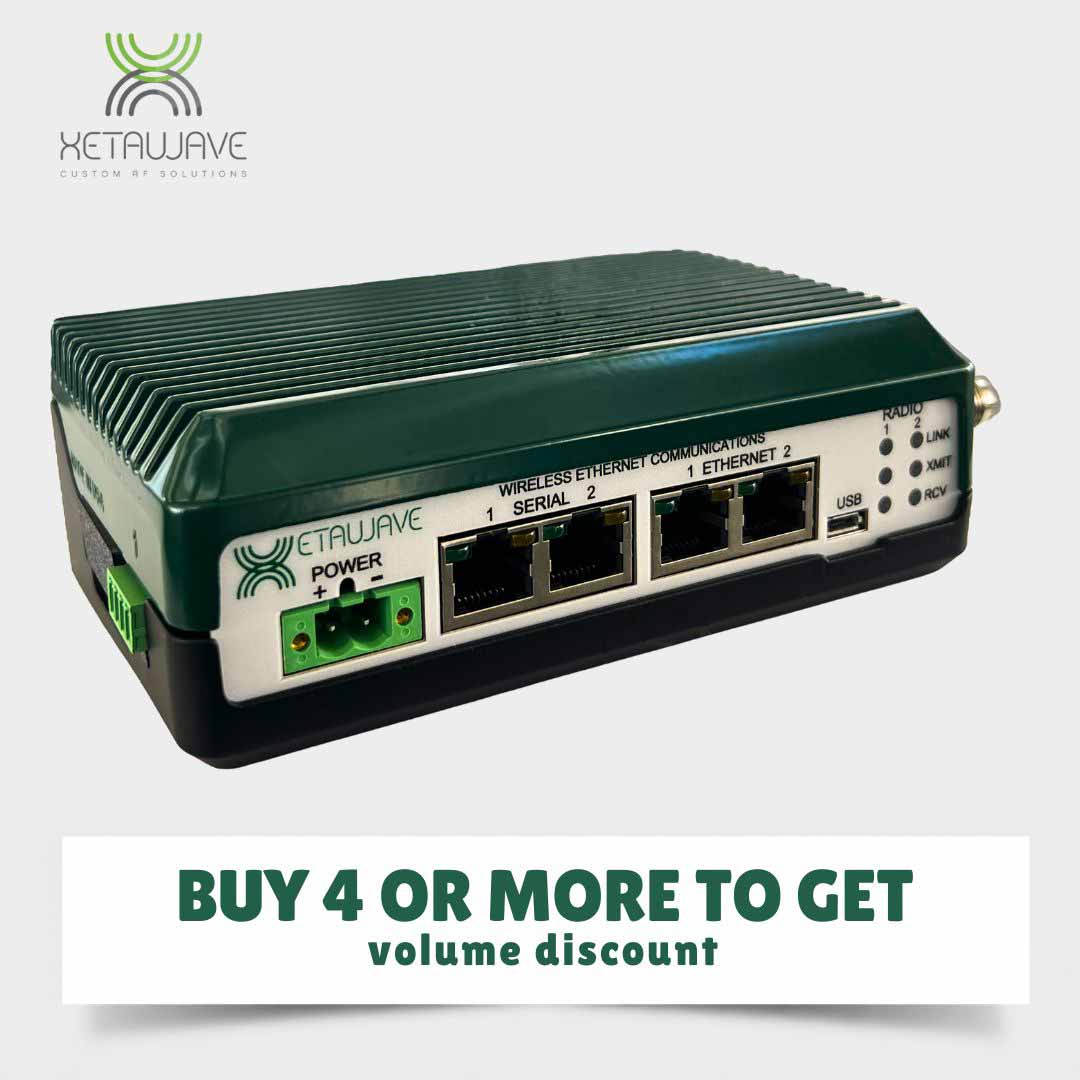

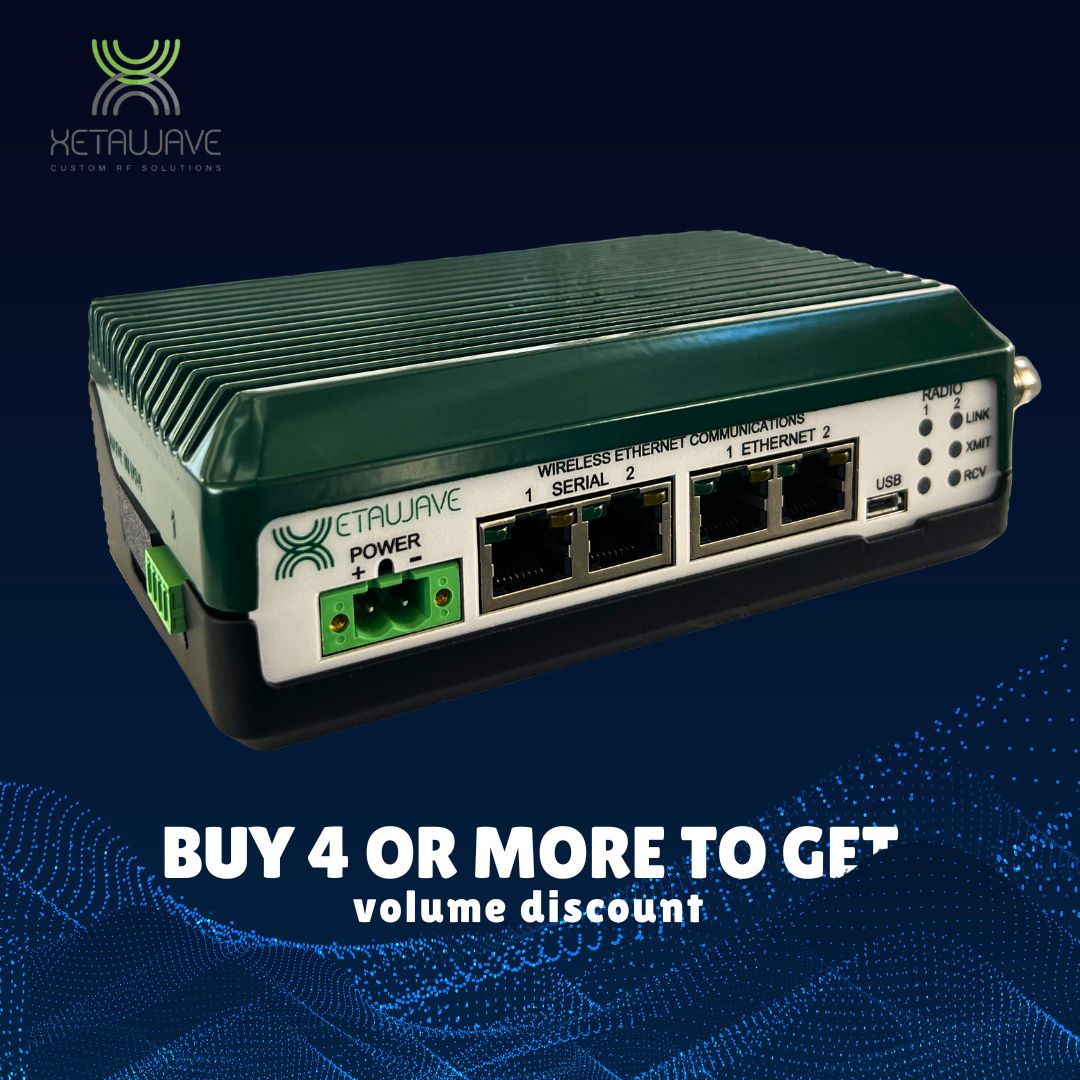

The XetaWave XETA9-22IMDFC-IO is a rugged, metal-enclosed industrial-grade software-defined radio (SDR) designed for the unlicensed 900-928 MHz ISM band (FHSS and DTS modes). This model combines high-performance wireless connectivity with 8 programmable multi-function I/O channels, enabling direct integration of sensors, actuators, relays, valves, alarms, or legacy devices without additional hardware – perfect for distributed SCADA, telemetry, remote monitoring, and industrial automation applications in license-free environments.
Key features include:
- Processor and OS: 300 MHz ARM Cortex-A8 processor with 1 GB RAM and 4 GB flash storage, running open-source Debian Linux for custom applications, protocol support (Modbus RTU/TCP), and long-term flexibility.
- Connectivity: 2× 10/100 Ethernet ports, 2× RS-232/422/485 serial ports, 1× USB port.
- Programmable I/O: 8 independently configurable channels supporting analog inputs/outputs (e.g., 1-5V or 4-20mA), digital inputs/outputs, counters (up to 10 kHz), and more – ideal for monitoring/control of field devices with programmable power-up/fail-safe states.
- RF Performance: FHSS and DTS modes with modulations from MSK to 64QAM, delivering over-the-air data rates from ~57 kbps (narrow channels) up to 5.3 Mbps (wider channels/high modulations). Adjustable transmit power up to 1W (+30 dBm) enables exceptional range (70+ miles LOS in optimal conditions) and strong noise immunity.
- Advanced Networking: Multi-speed multipoint capability, Master Messaging Service (MMS) synchronization, seamless roaming, AES 128/256-bit encryption, payload compression, and support for point-to-point, point-to-multipoint, enhanced multipoint, peer-to-peer, and mesh topologies.
- Enclosure and Compliance: Durable metal enclosure built for harsh industrial conditions (Class 1 Div 2 certified), FCC/IC compliant, manufactured in the USA.
- Applications: Excellent for agriculture sensor networks, water/wastewater pump/valve control, oil & gas remote monitoring, utilities, factory automation, and any license-free setup needing combined high-speed wireless and distributed I/O in rugged environments.
The XETA9 series offers unmatched flexibility in unlicensed 900 MHz networks with backward compatibility and Debian-based openness for custom integrations. This I/O-enhanced model reduces wiring and hardware costs while delivering reliable performance.
